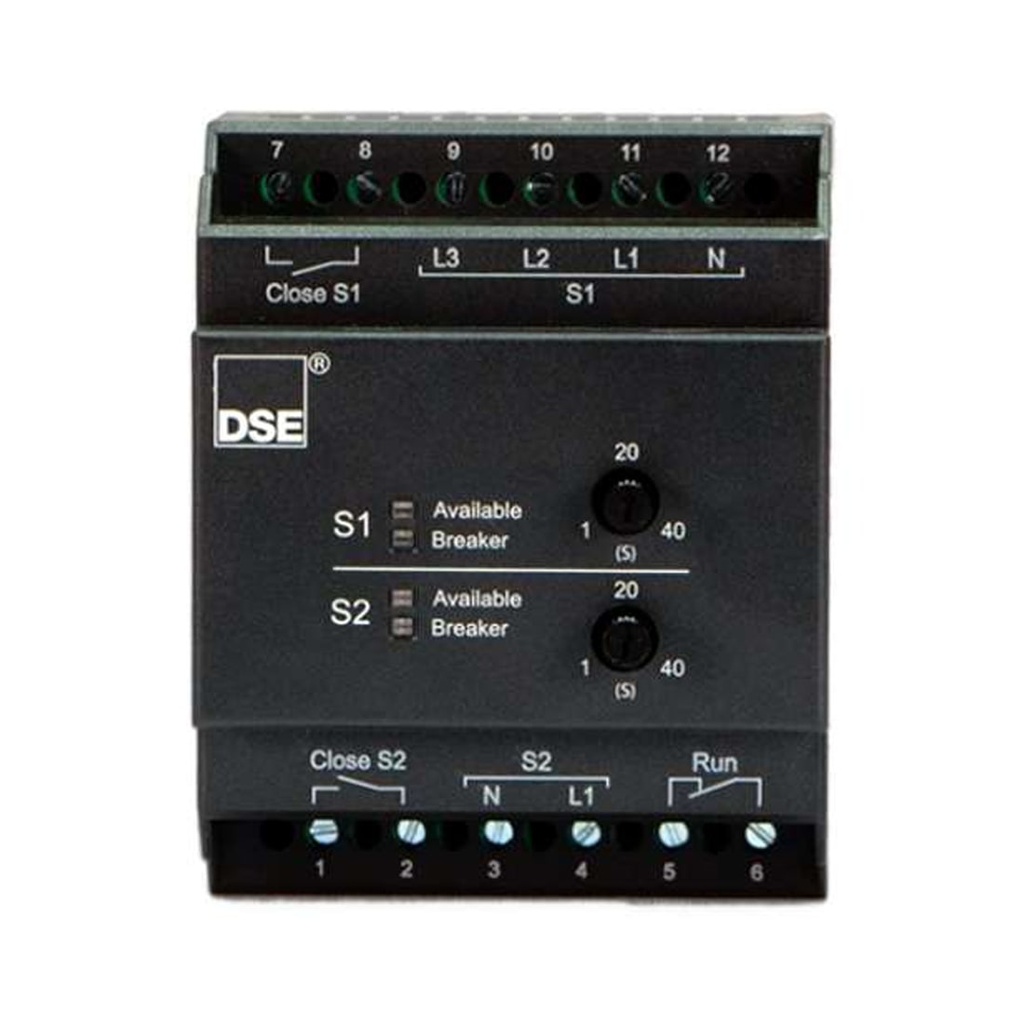

DSE 0327-03 ATS Control Module Original

https://powermaster.odoo.com/web/image/product.template/17754/image_1920?unique=2383dff

DSE327 Auto Transfer Switch Control Module (230 Volt)

$ 167.20 167.20000000000002 USD $ 167.20

$ 167.20

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE RAGE

85V to 150 V AC (L-N)

PRODUCT VARIANTS

0327-01 - 327 Auto Transfer Switch Control Module (230 Volt)


WEIGHT
0.66 POUNDS
SIZE
2 x 3 x 2 Inches


STORAGE TEMPERATURE RANGE
-40°C to +80°C






CONFIGURABLE TIMERS
Makes the product suitable for multiple application types.
LED INDICATORS.
Provides visual indication for operating and warning status.


SOURCE 1/SOURCE 2 CONTROL
Provides total flexibility for the application of the product.
  • Maximum Operating/Standby Current - ◖230 V (0327-01): Typical @ 230 V, 50 Hz S1 I RMS = 75 mA, Power = 0.9 W S2 I RMS = 50 mA, Power = 0.6 W ◖110 V (0327-02): Typical @ 110 V, 50 Hz S1 I RMS = 70 mA, Power = 0.8 W S2 I RMS = 50 mA, Power = 0.5 W
  • Volt Free Outputs - ◖Start/Run N/C : 5 A, 250 V AC ◖Loading Output : x2 5 A, 250 V AC
  • S1 & S2 - ◖110 V (0327-02): Voltage Range : 110 V - 50Hz to 70 Hz 85V to 150 V AC (L-N) ◖230 V (0327-01) Voltage Range : 230 V - 40Hz to 60 Hz 180 V to 300 V AC (L-N)
  • Dimensions - ◖Overall : 72mm x 90.5 mm x 65 mm 2.8” x 3.6” x 2.6”
  • Weight - ◖0.3 kg
  • Operating Temperature Range - ◖-30°C to +70°C
  • Storage Temperature Range - ◖-40°C to +80°C


The DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources. This could be from both generator or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2).

The DSE327 can be ordered in 110 V and 230 V variants. Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2. Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2. Various timing sequences are available to prevent nuisance starting on minor supply breaks.


MAXIMUM OPERATING/STANDBY CURRENT

230 V (0327-01):

Typical  @ 230 V, 50 Hz

S1

I RMS = 75 mA, Power  = 0.9 W

S2

I RMS = 50 mA, Power  = 0.6 W


110 V (0327-02):

Typical  @ 110 V, 50 Hz

S1

I RMS = 70 mA, Power  = 0.8 W

S2

I RMS = 50 mA, Power  = 0.5 W


VOLT FREE OUTPUTS

START/RUN N/C

5 A, 250 V AC

LOADING OUTPUT x2

5 A, 250 V AC

S1 & S2

230 V (0327-01)VOLTAGE RANGE

230 V - 40Hz to 60 Hz

180 V to 300 V AC (L-N)


DIMENSIONS

OVERALL

72mm x 90.5 mm x 65 mm2.8” x 3.6” x 2.6”

WEIGHT

0.3 kg


OPERATING TEMPERATURE RANGE

-30°C to +70°C


STORAGE TEMPERATURE RANGE

 -40°C to +80°C
