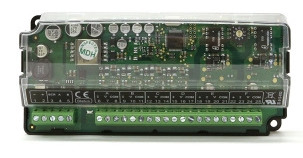

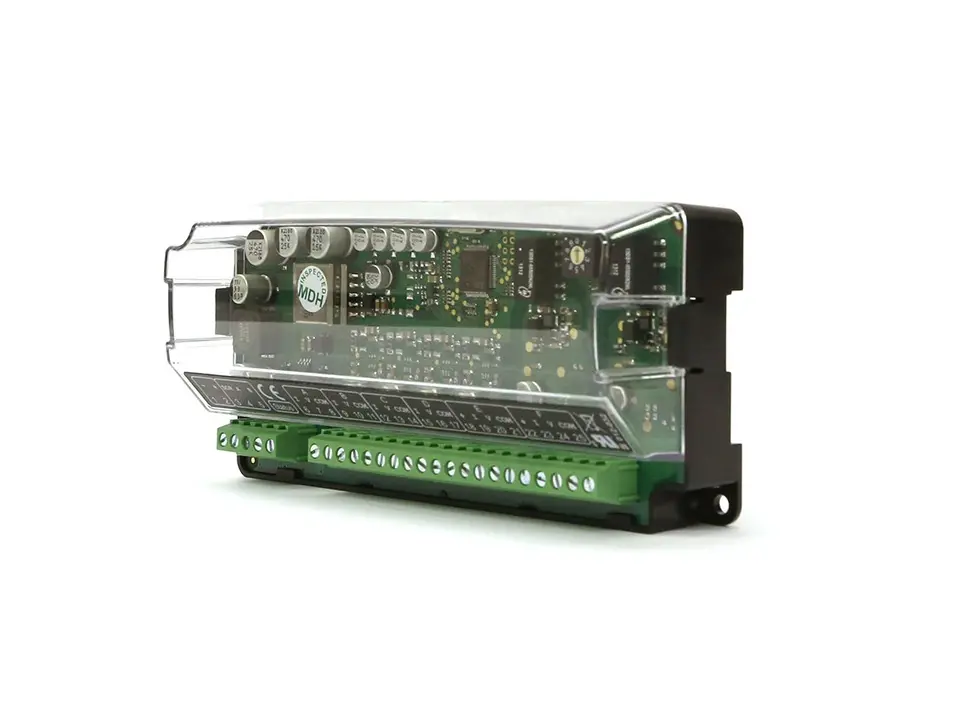

DSE 2152-01 Net® Analogue Output (6) Expansion Module Original

2152 Analogue Output DSEnet module

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

8V to 35V continuous

2152-01 - 2152 Analogue Output Expansion Module

0.5 POUNDS

7 x 4 x 2 Inches

-30°C to +70°C
-22 °F to +158 °F

Rail & chassis mount

of 4 x DSE2152’s to a single host controller.

lost LED.

DC Supply - ◖8 V to 35 V continuous
Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs will not be maintained during cranking.
Maximum Operating Current - ◖120 mA at 12 V, 60 mA at 24 V

Outputs - ◖Output A, B, C & D: Non-Isolated Configurable As: 4 to 20 mA DC or 0 V to 10 V ◖Dc Output E & F: Optional Isolation Configurable As: 4 to 20 mA DC or 0 V to 10 V DC
Dimensions - ◖Weight: 0.5 POUNDS ◖Size: 7 x 4 x 2 Inches
Storage Temperature Range - ◖-40 °C to +85 °C -40 °F to +185 °F
Operating Temperature Range - ◖-30°C to +70°C -22 °F to +158 °F
