  2. DSE 7420-03 MKII Control Module Original

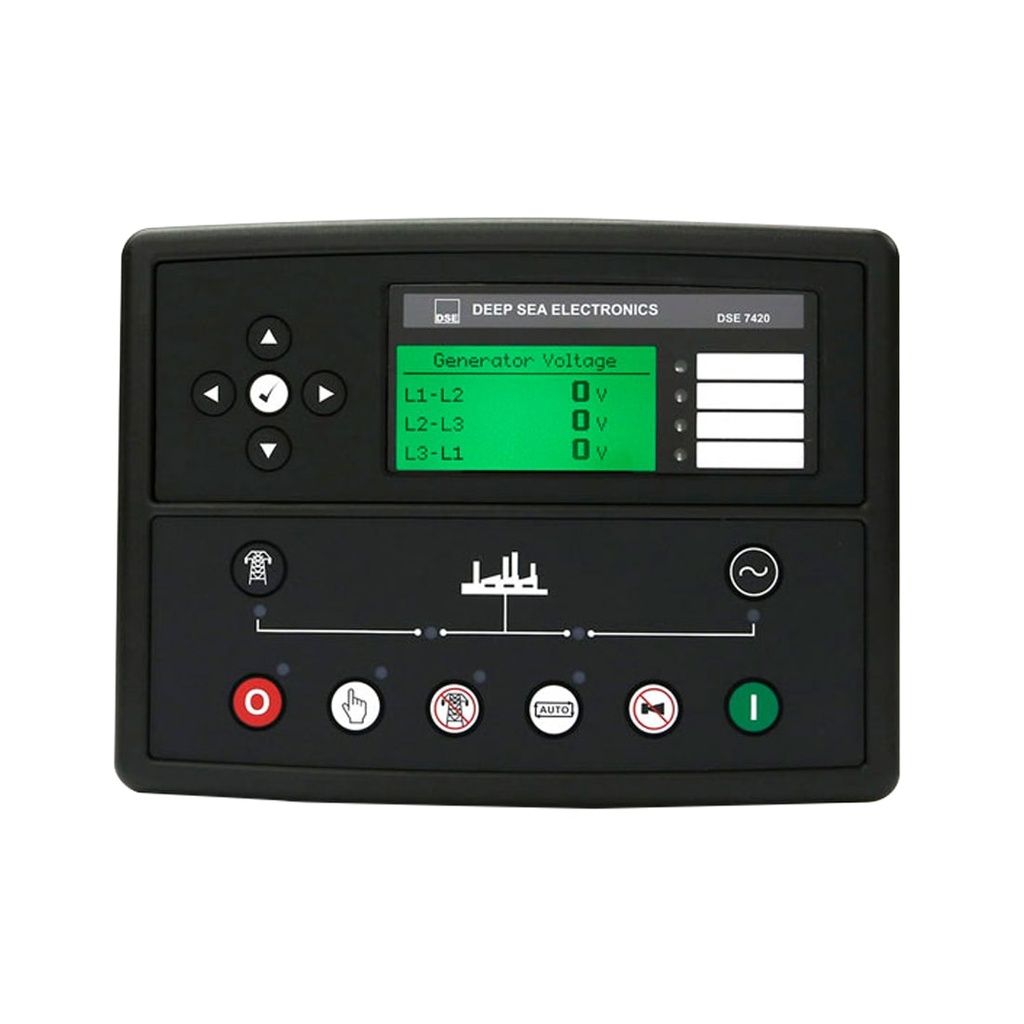

DSE 7420-03 MKII Control Module Original

https://powermaster.odoo.com/web/image/product.template/9627/image_1920?unique=2383dff

DSE7420 MKII - Auto Mains (Utility) Failure Control Module

$ 906.06 906.0600000000001 USD $ 906.06

$ 906.06

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING

8 V to 35 V Continuous 5 V
for up to 1 Minute


PRODUCT VARIANTS
7420-03 - 7420 MKII Auto Mains (Utility) Failure Control Module


WEIGHT
1.9 POUNDS
SIZE
9 x 7 x 2 Inches
FREQUENCY RANGE
3.5 Hz to 75 Hz


The DSE7420 MKII is an intelligent, powerful auto mains (utility) failure control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications.

PRODUCT VARIANTS

7420-03 – 7420 MKII Auto Mains (Utility) Failure Control Module

CONFIGURABLE DIGITAL INPUTS

Provides multiple installation options.


CONFIGURABLE POWER-UP MODE

Choose to power up the module in stop / manual / auto mode.


MPU FAIL DELAY

If an MPU failure is detected the alarm can be delayed to allow for transient in the signal.

  • Continuous Voltage Rating - ◖8 V to 35 V Continuous 5 V for up to 1 Minute
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
  • Maximum Standby Current - ◖330 mA at 12 V, 160 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V
  • Inputs - ◖Digital Inputs A-H : Negative Switching ◖Analogue Inputs A, B, E & F : Configurable as Negative Switching Digital Input 0 V to 10 V Sensor 4mA to 20mA Sensor Resistive Sensor ◖Analogue Inputs C & D : Negative Switching Digital Input Resistive Sensor
  • Inputs - ◖Digital Inputs A-H : Negative Switching ◖Analogue Inputs A, B, E & F : Configurable as Negative Switching Digital Input 0 V to 10 V Sensor 4mA to 20mA Sensor Resistive Sensor ◖Analogue Inputs C & D : Negative Switching Digital Input Resistive Sensor
  • Outputs - ◖Output A (Fuel) : 15 A DC at supply voltage ◖Output B (Start) : 15 A DC at supply voltaje ◖Outputs C & D : 8 A AC at 250 V AC (Volt free) ◖Auxiliary Outputs E,F,G,H,I & J : 2 A DC at supply voltage
  • Generator & Mains - ◖Voltage Range : 15 V to 415 V AC (Ph-N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pick Up - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)


The DSE7420 MKII is an intelligent, powerful auto mains (utility) failure control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications.
The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 Minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

510 mA at 12 V, 240 mA at 24 V

MAXIMUM STANDBY CURRENT



INPUTS

DIGITAL INPUTS A-H

ANALOGUE INPUTS A,B, E & F

ANALOGUE INPUTS C & D

OUTPUTS

OUTPUT A (FUEL)

15 A DC at supply voltage

OUTPUT B (START)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J

2 A DC at supply voltage



GENERATOR & MAINS

VOLTAGE RANGE

FREQUENCY RANGE

MAGNETIC PICK UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)
