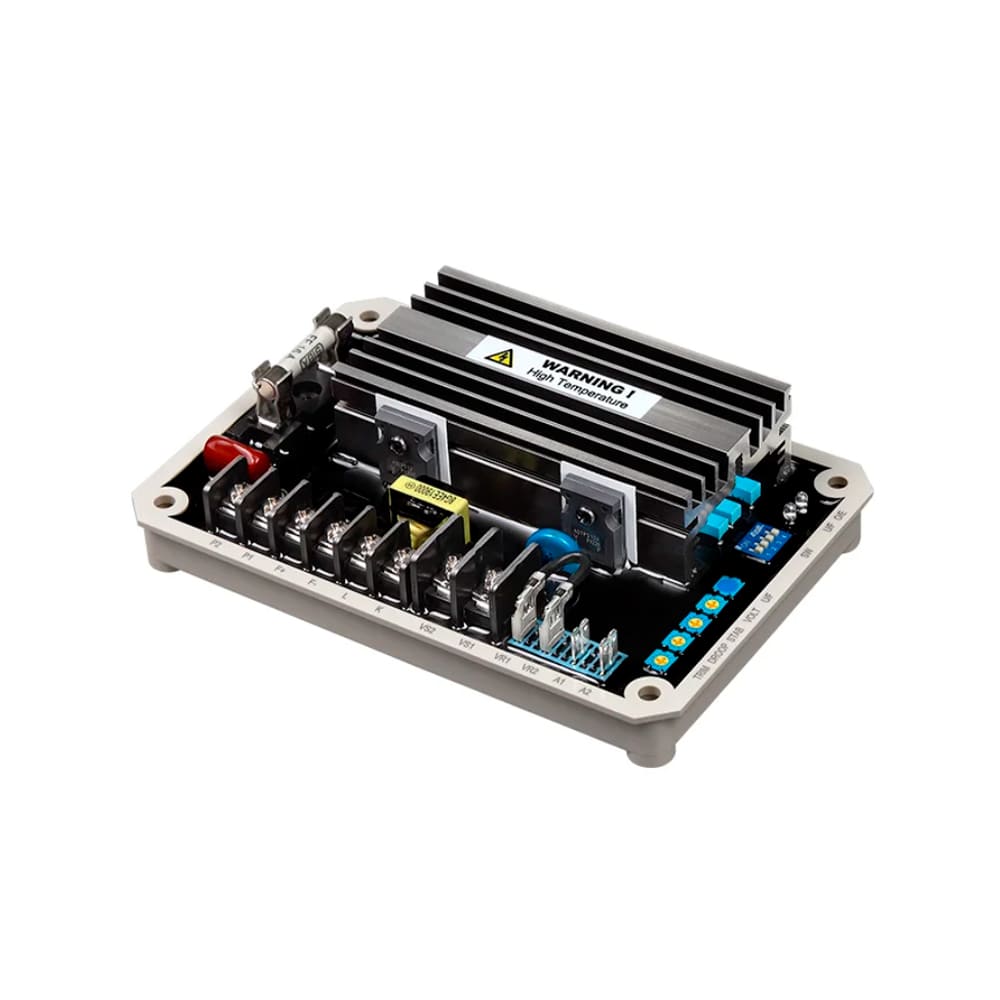

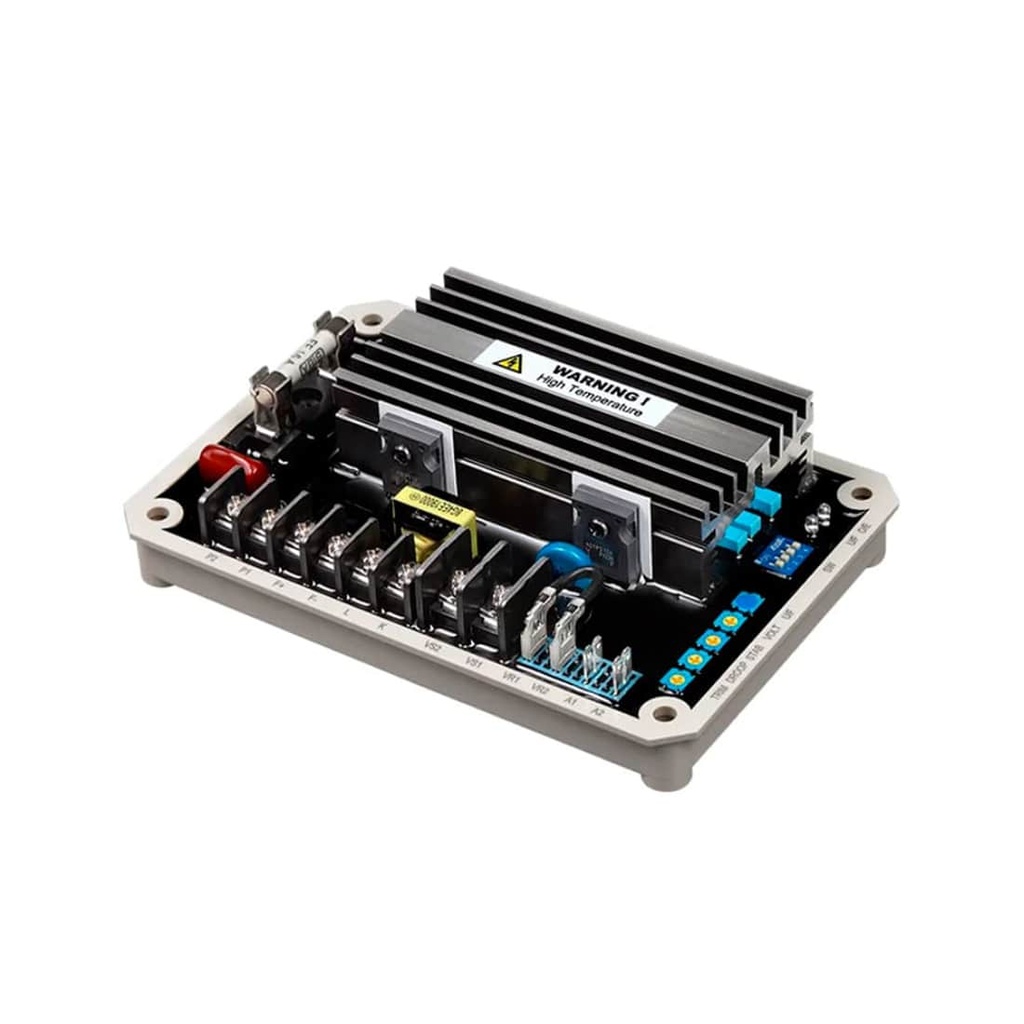

PMI ADVR-16 Digital Voltage Regulator

https://powermaster.odoo.com/web/image/product.template/10051/image_1920?unique=f901bd0

Power Master

Hybrid Analog Digital Voltage Regulator

$ 405.00 405.0 USD $ 405.00

$ 405.00

Not Available For Sale

This combination does not exist.

Contact Us
ADVR Mcpherson Controls ADVR-16

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

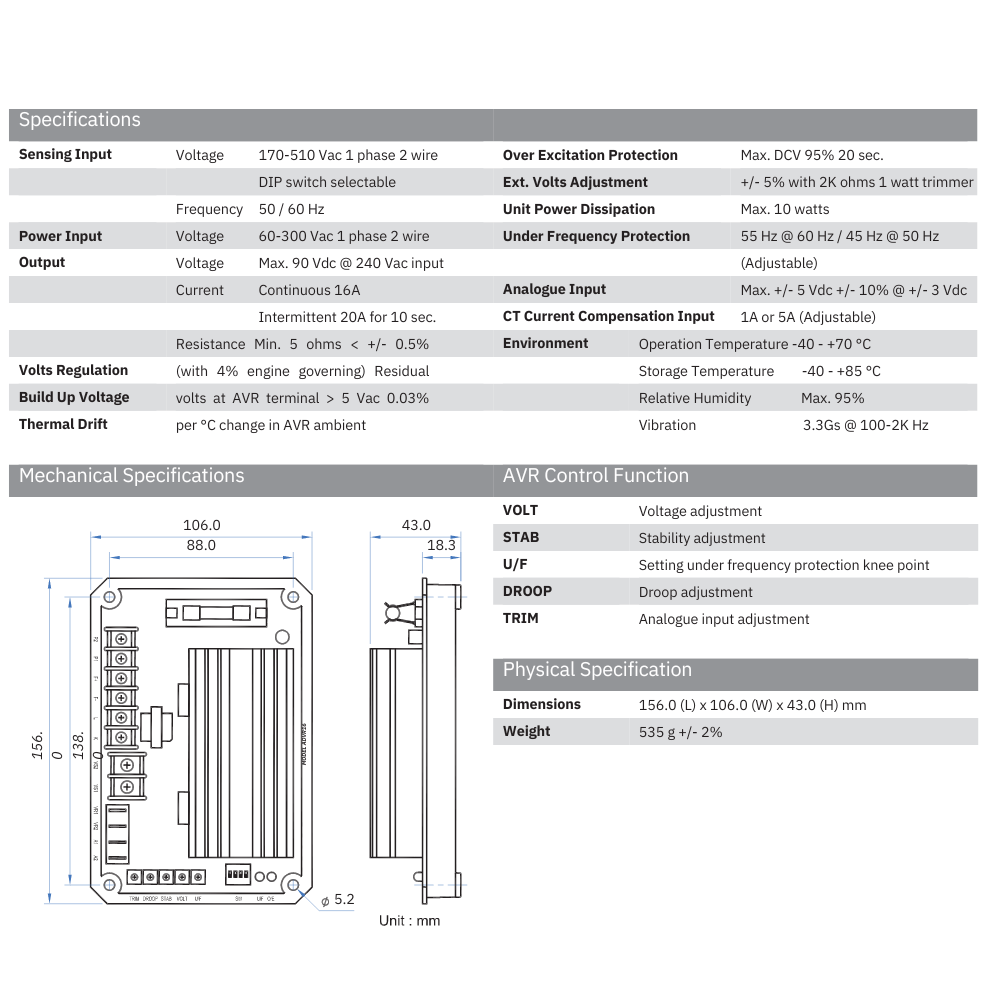

SENSING INPUT

 170-510 Vac 1 phase 2 wire DIP switch selectable

OUTPUT

Max. 90 Vdc @ 240 Vac input

WEIGTH
1.17 POUNDS
SIZE
7 x 4 x 2 Inches
VOLTAGE REGULATION

+/- 0.5%

BUILD UP VOLTAGE

volts at AVR terminal > 5 Vac 0.03%

THERMAL DRIFT

0.03% per °C change in AVR ambient

VOLTS REGULATION

(with 4% engine governing) Residual

  • Sensing input -  ◖Voltage :  170-510 Vac 1 phase 2 wire DIP switch selectable ◖ Frecuency :  50 / 60 Hz
  • Power input -  ◖Voltage: 60-300 Vac 1 phase 2 wire -  ◖Output : Voltage:  Max. 90 Vdc @ 240 Vac input ◖Current: Continuous 16A ◖Resistance :  Min. 5 ohms < +/- 0.5%
  • Volts Regulation  -  ◖ (with 4% engine governing) Residual
  • Build up voltage  -  ◖ volts at AVR terminal > 5 Vac 0.03%
  • Thermal drift -  ◖ per °C change in AVR ambient
  • Over Excitation Protection -  ◖ Max. DCV 95% 20 sec
  • Ext. Volts Adjustment -  ◖ +/- 5% with 2K ohms 1 watt trimmer
  • Unit Power Dissipation -  ◖ Max. 10 watts
  • Under Frequency Protection -  ◖ 55 Hz @ 60 Hz / 45 Hz @ 50 Hz (Adjustable)
  • Analogue Input  -  ◖ Max. +/- 5 Vdc +/- 10% @ +/- 3 Vdc
  • CT Current Compensation Input -  ◖ 1A or 5A (Adjustable)
  • Environment -  ◖ Operation Temperature : -40 - +70 °C ◖ Storage Temperature : ​ -40 - +85 °C ◖ Relative Humidity :  Max. 95%  ◖ Vibration :  3.3Gs @ 100-2K Hz



ADVR-16 Universal 16 Amp 1/2 Wave Self Excited Automatic Voltage Regulator Can Be Used In Parallel Operation. Compatible with Mecc Alte* UVR6, Marelli Motori* M40FA640A-MARK I and Caterpillar* AVR Marelli M40FA640A – M16FA650A – M16FA655A – M25FA600A – M16FA600A – M25SA600A – Basler BECS200 – KR4FFX – KR4 – KR7 – AEC63-7 – Caterpillar 3516B – VR65 – VR6 – 85Z 11892 – 3406 – VR3
