Flexibility and cost effectiveness of one charger to suit different voltage types.
BATTERY CHARGER AND POWER SUPPLY
Versatile product for multiple application types.
86% OPERATING EFFICENCY
Reliability, low running costs and cool running.
Voltage Range-◖90 V to 305 V (L to N)
Frequency Range-◖48 Hz to 64 Hz (L to N)
DC Output-◖Output : 10 A DC at 12 V & 24 V DC
◖Ripple And Noise : <1%
◖Efficiency : >86%
Regulation-◖Line : <0.5%
◖Load : 2%

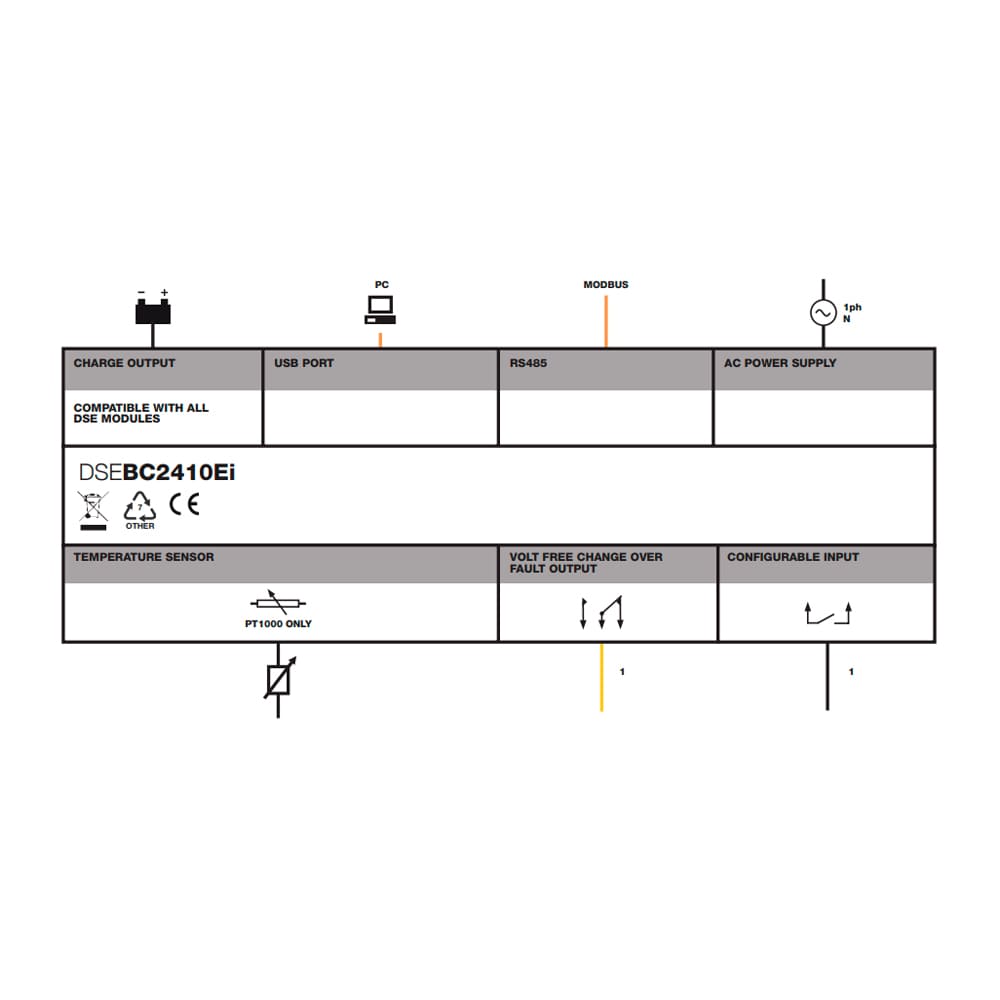

Temperature Sensor Input
-◖PT1000
Protections-◖Short circuit
DC over voltage
DC over current
Reverse polarity
Over temperature
AC under & over voltage
Battery charger failure
Charge Failure Relay-◖3 A at 30 V DC volt free relay
Operating Temperature Range -◖-30 ºC to +55 ºC
-22 ºF to +131 ºF
OperatingTemperatture Range
(DE-RATE TO OUTPUT)-◖-30 ºC to +80 ºC
-22 ºF to +176 ºF)

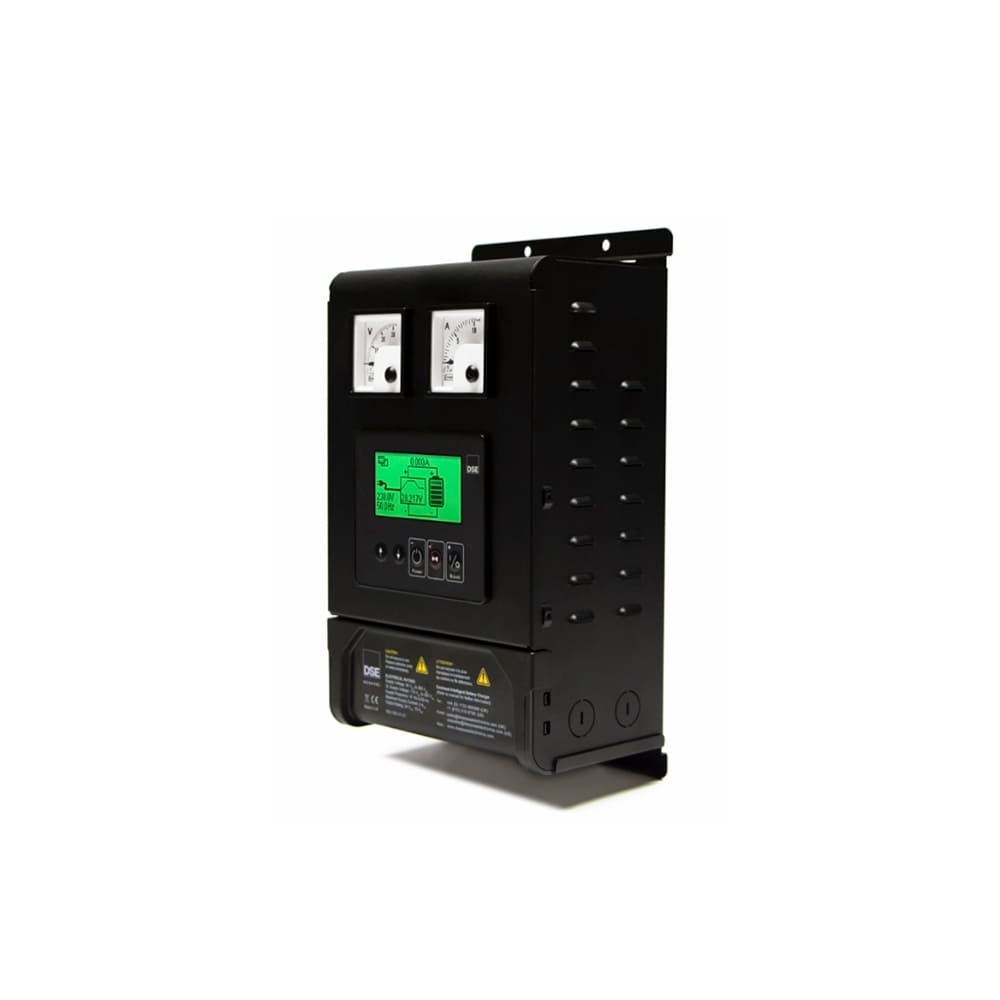

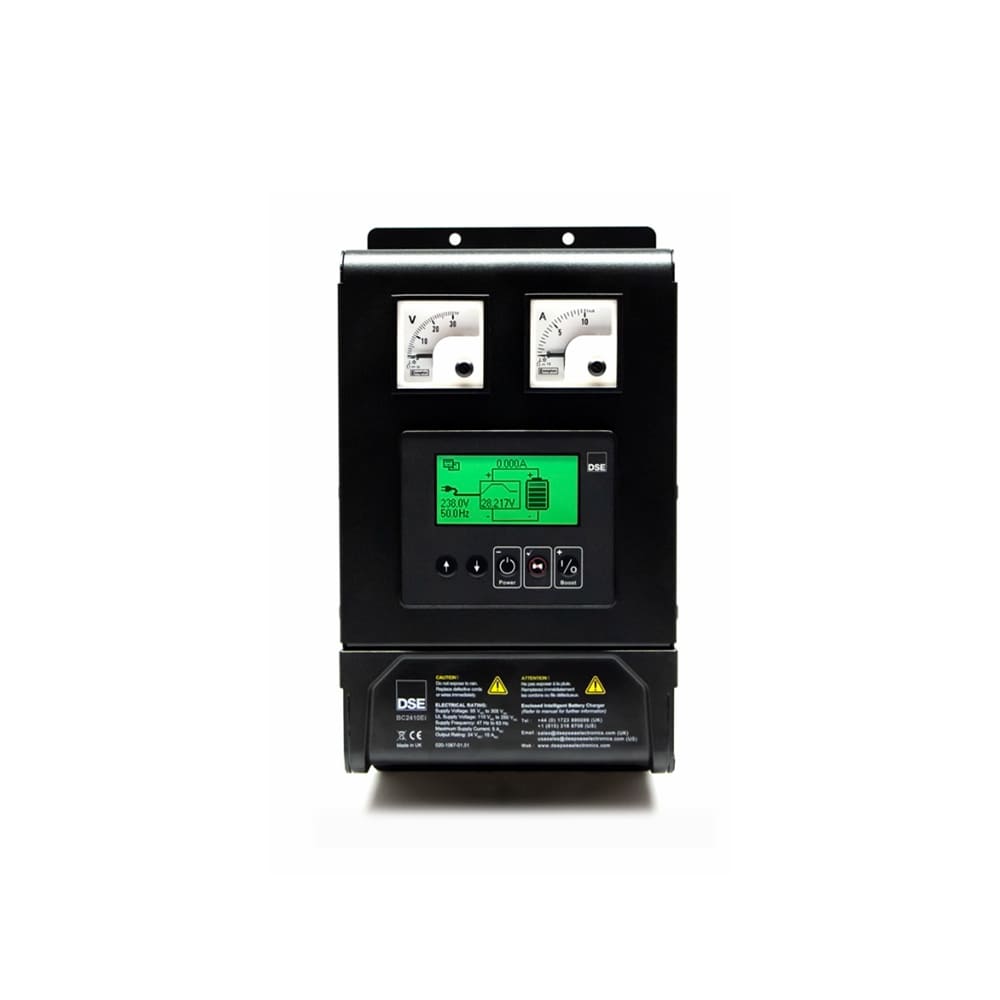

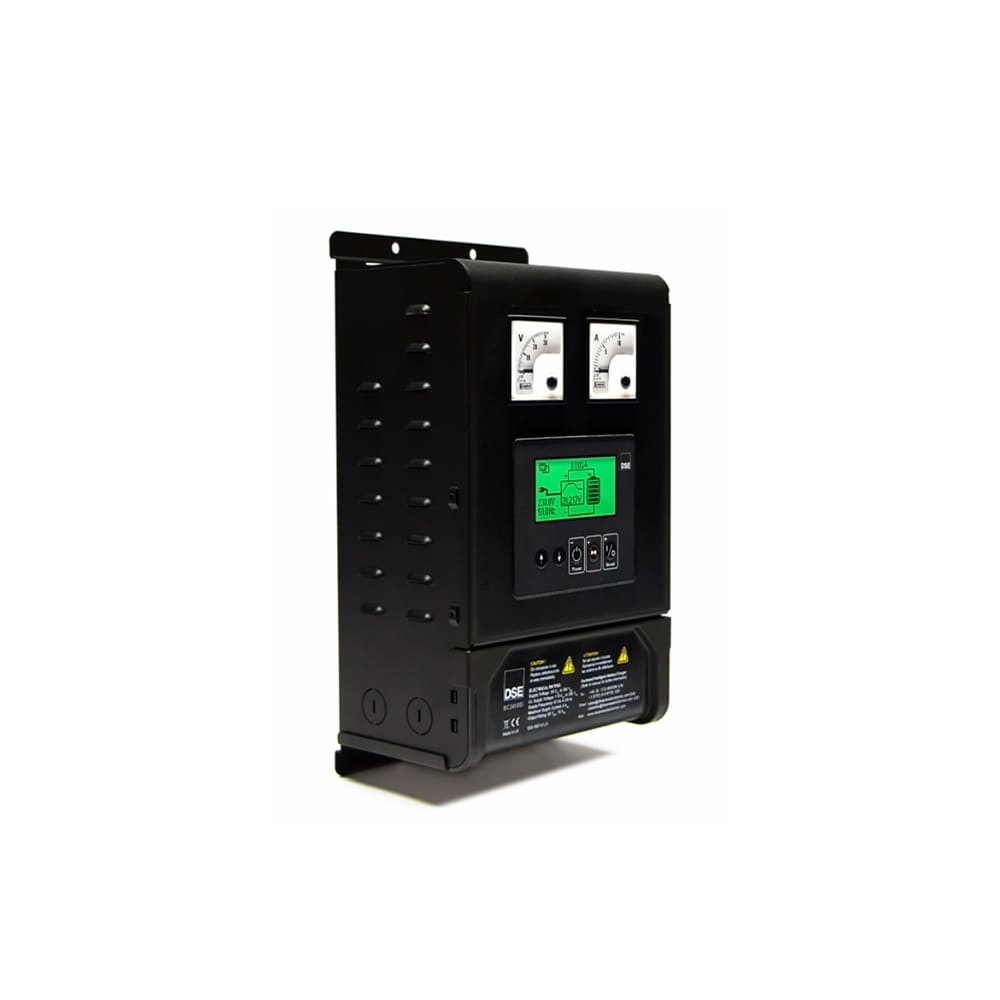

The DSEBC2410Ei is an enclosed intelligent battery charger designed to work with multiple battery types across a wide range of applications. The advanced technology has been developed to automatically detect system settings and charging profiles including cell voltage and boost voltage to provide high-levels of charging support.
Additional high-level features include external system integration via Modbus RS485, remote temperature compensation, short-circuit and reverse polarity protection, multi-stage charging regimes, configurable charging curves and battery life optimisation.
Provides safe and complete charging and charge maintenance of various battery types.
Output current can be adjusted to suit alternative battery sizes and prevent overcharging on custom curves.
Provides accurate and reliable operation and safe charging and monitoring of various battery types.
Delivers added protection.
Provides the flexibility to charge battery types not available in the standard curve library.
Provides a warning that the battery voltage is above that specified for the type of battery.
Provides a warning that the battery is drawing a current above the configuration of the type of battery connected.
Provides a warning if a battery Is not connected or has been disconnected.
The battery charger self diagnoses at regular intervals, providing advance warning of any internal fault.
Direct battery temperature measurement, Increases battery performance to the maximum possible at given temperature as specified by the battery manufacturer.
Flexible configuration of the battery charger to suit battery parameters and installations.
Remote display for monitoring of the battery charging and charger status from a remote location.
