  2. DSE 0331-01 ATS Control Module

DSE 0331-01 ATS Control Module

https://powermaster.odoo.com/web/image/product.template/9640/image_1920?unique=2383dff

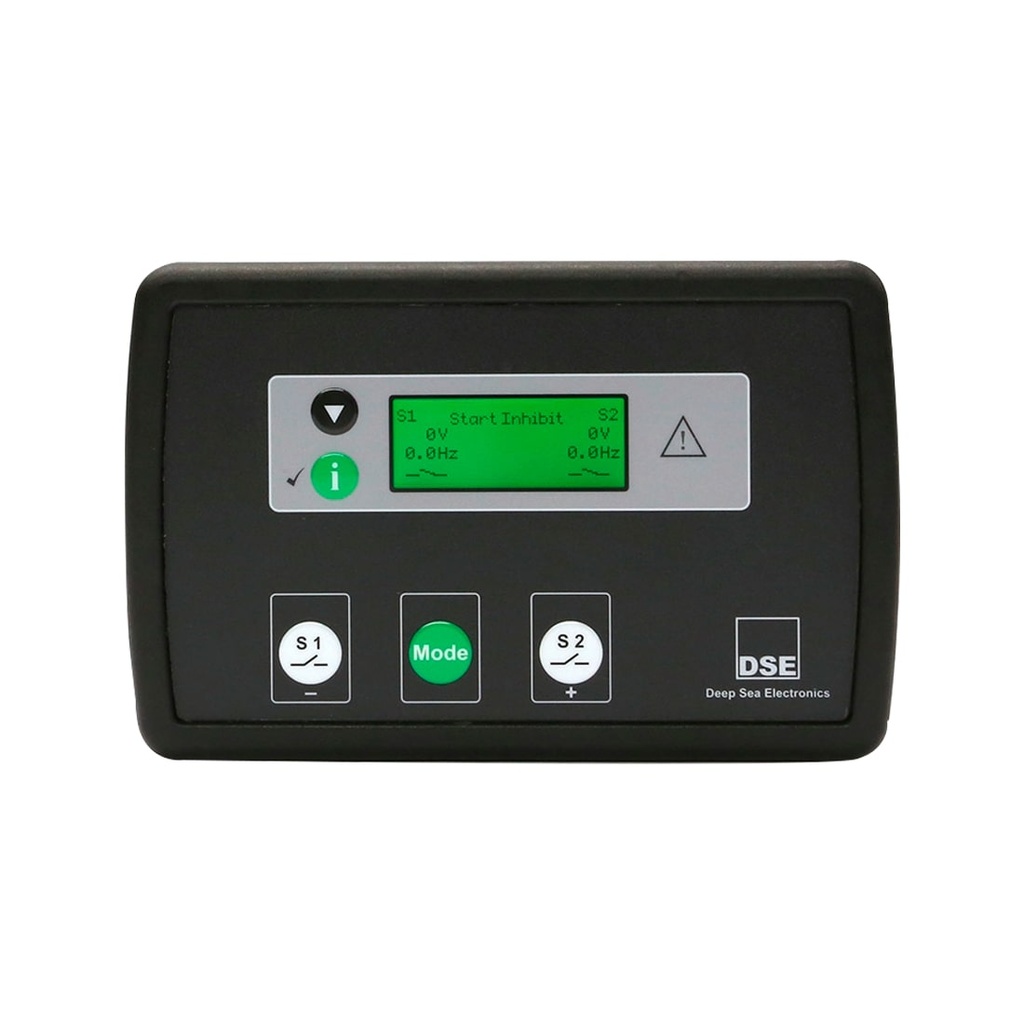

DSE331 Auto Transfer Switch Control Module - 12/24 Volt DC Supply (020-313 gasket not included)

$ 452.31 452.31 USD $ 452.31

$ 452.31

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 35 V Continuous

PRODUCT VARIANTS

0331-01 - 331 Auto Transfer Switch Control Module - 12/24 Volt DC Supply


WEIGHT
0.79 POUNDS
SIZE
7 x 4 x 1 Inches



FREQUENCY RANGE

3.5 Hz to 75 Hz



The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.

The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.

PRODUCT VARIANTS

0331-01 - 331 Auto Transfer Switch Control Module - 12/24 Volt DC Supply



COMPATIBLE WITH DSE160 POWER SUPPLY
When no DC supply is available the DSE160 power supply connects to an AC power supply and then to the control module.
CHECK SYNC FEATURE
Ensures the smoothest possible transfer is achieved.
DSE CONFIGURATION SUITE PC SOFTWARE
Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖168 mA at 12 V, 80 mA at 24 V
  • Maximum Standby Current - ◖39 mA at 12 V, 20 mA at 24 V
  • Outputs - ◖Output A & B : Normally open volt-free output 8 A DC at 35 V ◖DC Output C & D : Changeover volt-free output 8 A DC at 35 V DC ◖Auxillary Output E, F, G & H : 2 A DC at supply voltage



  • S1 & S2 - ◖Voltage Range : 15 V to 333 V AC (L-N) - ◖Frequency Range : 3.5 Hz to 75 Hz
  • Dimensions - ◖Overall : 180 mm x 116 mm x 42 mm 7.1” x 4.6” x 1.7” ◖Panel Cut-Out : 154 mm x 98 mm 6” x 3.9” ◖Maximum Panel Thickness : 8 mm 0.3”
  • Operating Temperature Range - ◖-30°C to +70°C
  • Storage Temperature Range - ◖-40°C to +80°C

The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.

The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous


CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.  LEDs and backlight will not be maintained during cranking.


MAXIMUM OPERATING CURRENT

168 mA at 12 V, 80 mA at 24 V


MAXIMUM STANDBY CURRENT

39 mA at 12 V, 20 mA at 24 V




OUTPUTS

OUTPUT A & B

Normally open volt-free output

8 A DC at 35 V DC


OUTPUT C & D

Changeover volt-free output

8 A DC at 35 V DC


AUXILLARY OUTPUT E, F, G & H

2 A DC at supply voltage

S1 & S2


VOLTAGE RANGE

15 V to 333 V AC (L-N)


FREQUENCY RANGE

3.5 Hz to 75 Hz
