DSE 2541-02 Remote Battery Charger Original

Deep Sea 2541-02 Remote Display - Battery Charger

DSE 2541-02 Remote Battery Charger Original

Display Module

2541 Remote Display - Battery Charger (Intelligent only)

$ 268.99 268.99 USD $ 268.99

$ 268.99

This combination does not exist.

Add to cart Buy now

DSE Battery Charger DSEPower DSE2541

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

CONTINUOUS
VOLTAGE RATING

8 V to 35 V Continuous

PRODUCT VARIANTS

2541-02 - 2541 Remote Battery Charger Display Module

WEIGHT

0.5 POUNDS

SIZE

5 x 4 x 1 Inches

STORAGE TEMPERATURE RANGE

-40 °F to +185 °F

Key Features
Description

LARGE BACK-LIT

Icon LCD display

FRONT PANEL BUTTON

Charger configuration

REMOTE BATTERY CHARGER

And charger cycle monitoring

Continuous Voltage Rating - ◖8 V to 35 V
Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
Maximun Operating Current - ◖ 80 mA at 12 V, 75 mA at 24 V
Maximum Standby Current - ◖ 65 mA at 12 V, 60 mA at 24 V

Fault Output - ◖3 A at 30 V DC volt-free relay
Dimensions - ◖Panel Cut-out : 4.6’’ x 3.6” ◖Maximum Panel Thickness : 0.3”
Storage Temperature Range - ◖-40 °C to +85 °C (-40 °F to +185 °F)
Operating Temperature Range - ◖-30°C to +70°C (-22 °F to +158 °F)

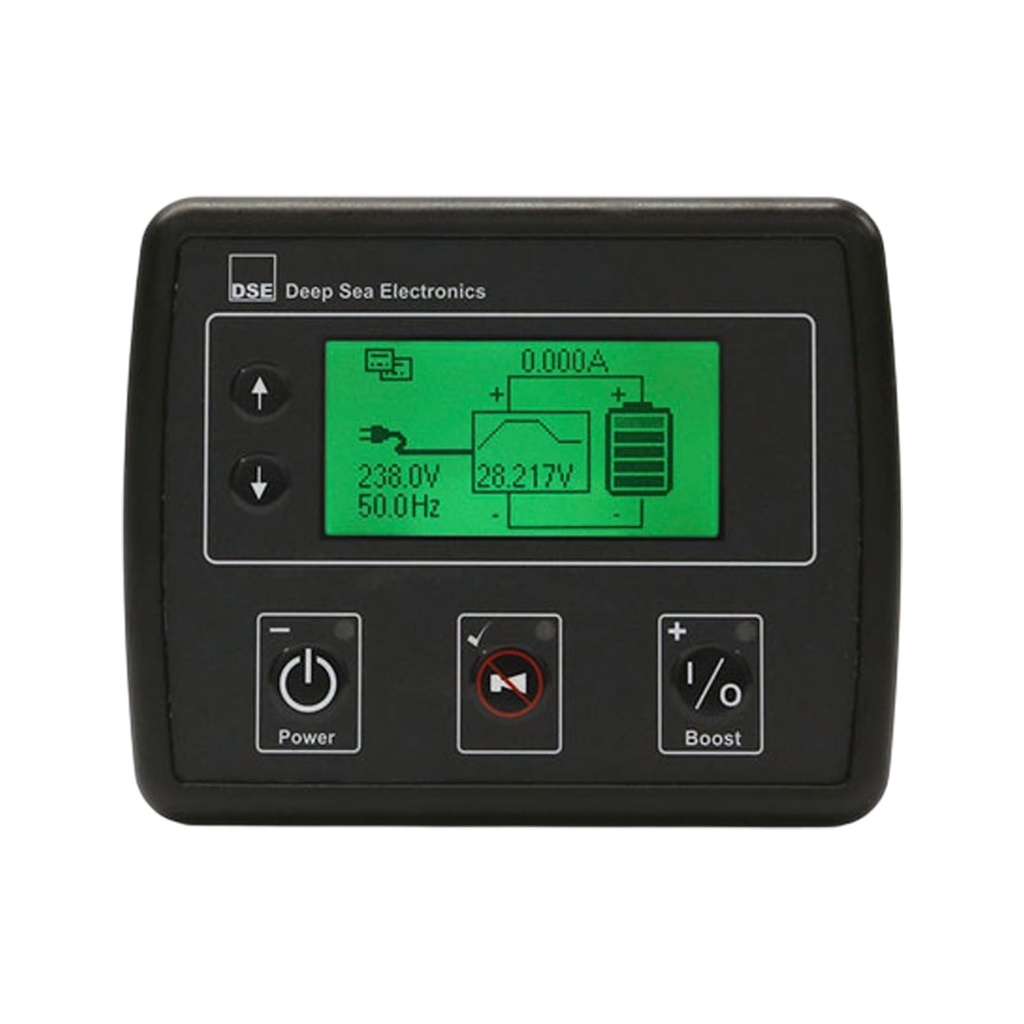

The DSE2541 Remote Battery Charger Display Module has been designed to work with all intelligent and enclosed battery chargers. The module displays information to the operator on charge output, charge cycle, mains (utility) supply status and indicates when fault conditions are present.

The DSE2541 enables the user to control a battery charger remotely via the front panel buttons.

The DSE2541 and its connected charger can be configured using the front panel buttons
