  2. DSE 7320-03 MKII Control Module Original

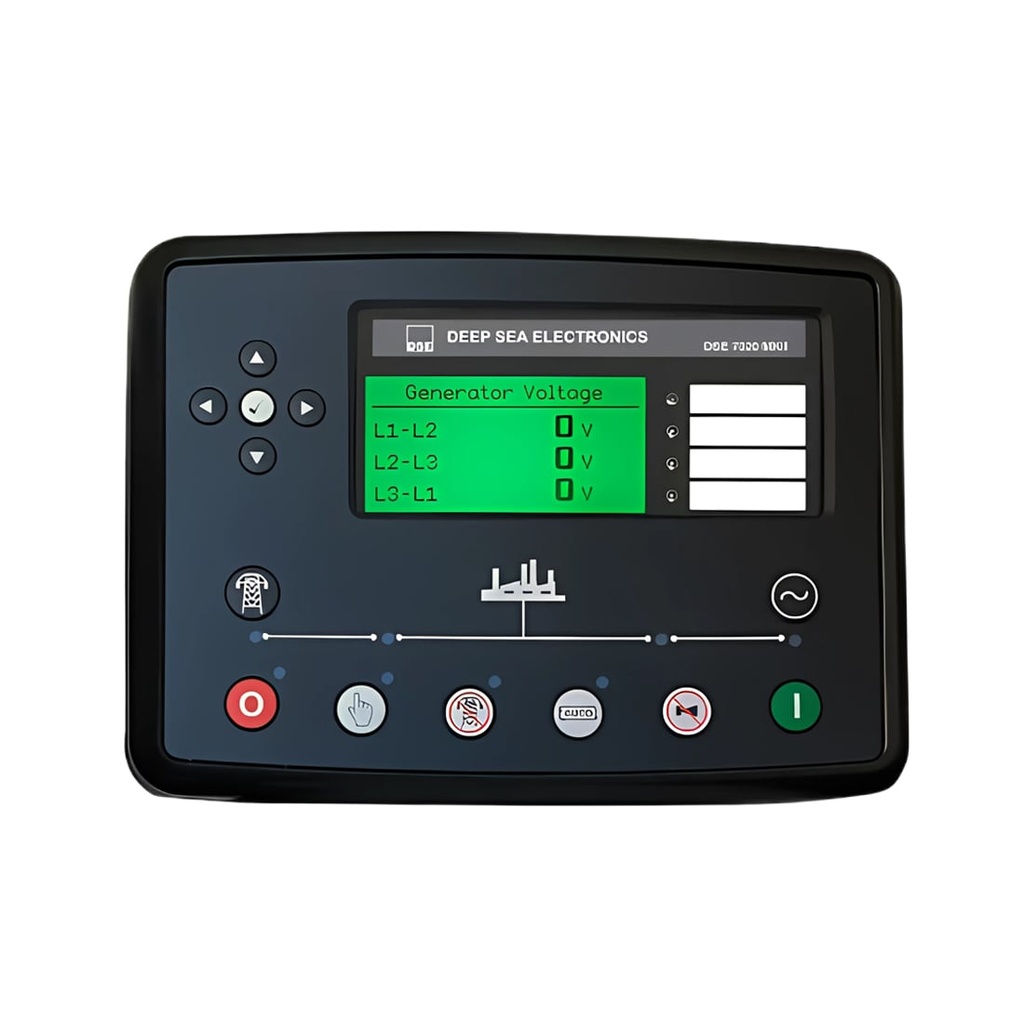

DSE 7320-03 MKII Control Module Original

https://powermaster.odoo.com/web/image/product.template/9618/image_1920?unique=2383dff

DSE7320 MKII - (REPLACES 7320-33)

$ 733.14 733.14 USD $ 733.14

$ 733.14

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING

8 V to 35 V Continuous 5 V
for up to 1 minute

PRODUCT VARIANTS
7320-03 - 7320 MKII Auto Mains (Utility) Failure Control Module
WEIGHT

2 POUNDS
SIZE
12 x 8 x 2 Inches

FREQUENCY RANGE

3.5 Hz to 75 Hz



PRODUCT VARIANTS

7320-03 – 7320 MKII Auto Mains (Utility) Failure Control Module



CONFIGURABLE POWER-UP MODE
Choose to power up the module in stop / manual / auto mode.
SUPPORTS 7 LANGUAGES.
English and 6 alternative languages can be stored in the control module.
DATA LOGGING FACILITY
Provides current and historical status information.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous 5 V for up to 1 minute
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖510 mA at 12 V, 240 mA at 24 V
  • Maximum Standby Current - ◖330 mA at 12 V, 160 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V
  • Generator & Mains (Utility) - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pickup - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)
  • Inputs - ◖Digital Inputs A To H : Negative switching ◖Analogue Inputs A & F : Configurable as: Negative switching digital input 0 V to 10 V sensor 4 mA to 20 mA sensor Resistive sensor ◖Analogue Inputs B, C, D & E : Configurable as: Negative switching digital input Resistive sensor
  • Outputs - ◖Output A & B (Fuel & Start) : 15 A DC at supply voltage ◖Outputs C & D : 8 A AC at 250 V AC (Volt-free) ◖Auxiliary Outputs E, F, G, H, I & J : 2 A DC at supply voltage
  • Dimensions - ◖Overall : 245 mm x 184 mm x 51 mm 9.6” x 7.2” x 2.0” ◖Panel Cut-Out : 220 mm x 160 mm 8.7” x 6.3” ◖Maximum Panel Thickness : 8 mm 0.3”
  • Storage Temperature Range - ◖-40°C to +85°C -40 °F to +185 °F
  • Operating Temperature Range - ◖-30°C to +70°C -22 °F to +158 °F ◖Heated Display Variant : -40 °C to +70 °C -40 °F to +158 °F

The DSE7320 MKII is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.

Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility.

Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED’s, remote PC’s and via SMS text alerts (with external communication device).


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

510 mA at 12 V, 240 mA at 24 V

MAXIMUM STANDBY CURRENT



GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

25 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz



MAGNETIC PICK UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)
