  3. DSE 8680-01 Control Module Original

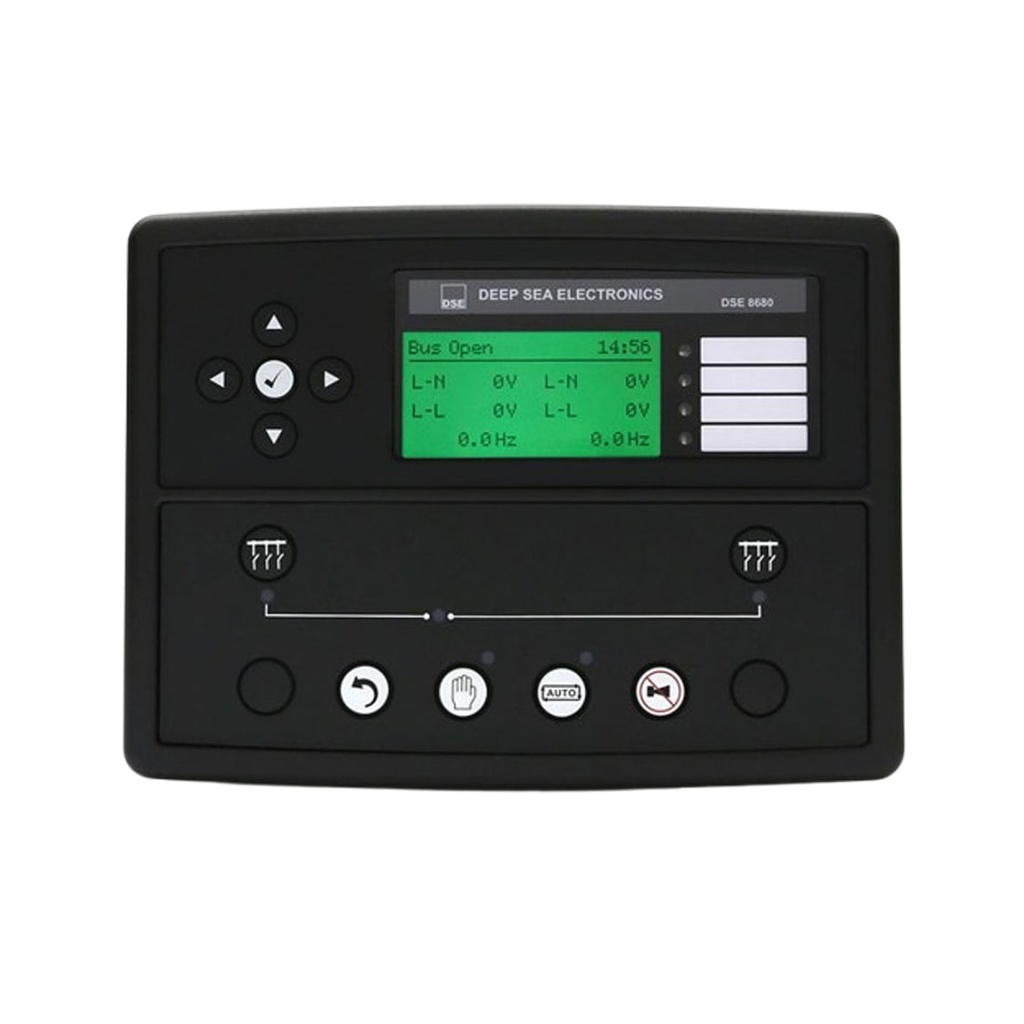

DSE 8680-01 Control Module Original

https://powermaster.odoo.com/web/image/product.template/9977/image_1920?unique=2383dff

Synchronising Generator Bus Tie Control Module

DSE8680 Bus Tie Controller

$ 1,645.37 1645.3700000000001 USD $ 1,645.37

$ 1,645.37

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSE8680

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


DC SUPPLY
VOLTAGE RATING
8 V to 35 V Continuous



PRODUCT VARIANTS

8680-01 - 8680 Synchronising Generator Bus Tie Control Module


WEIGHT
  1.8 POUNDS
SIZE
9 x 6 x 1 Inches



FREQUENCY RANGE

3.5 Hz to 75 Hz


The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.

PRODUCT VARIANTS

8680-01 - 8680 Synchronising Generator Bus Tie Control Module

INTEGRAL PLC EDITOR
Ensures additional applications are easily integrated into the system.​

CONFIGURABLE INPUTS/OUTPUTS (11/8)
Provides multiple installation options.
DATA LOGGING
(USB MEMORY STICK)

Provides current and historical status information.

  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Maximum Operating Current - ◖150 mA at 12 V, 80 mA at 24 V
  • Maximum Standby Current - ◖50 mA at 12 V, 30 mA at 24 V
  • Bus 1 And Bus 2 - ◖Voltage Range : 15 V to 333 V AC (L-N) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Outputs - ◖Outputs C & D : 8 A at 250 V AC (Volt free) ◖Auxiliary Outputs E,F,G,H,I & J : 2 A DC at supply voltage
  • Dimensions - ◖Overall : 240 mm x 181 mm x 42 mm 9.4” x 6.8” x 1.6” ◖Panel Cutout : 220 mm x 160 mm 8.7” x 6.3” ◖Maximum Panel Thickness : 8 mm 0.3¨
  • Operating Temperature Range - ◖-30 o C to +70 o C
  • Storage Temperature Range - ◖-40 o C to +85 o C


The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

MAXIMUM OPERATING CURRENT

150 mA at 12 V, 80 mA at 24 V

MAXIMUM STANDBY CURRENT

50 mA at 12 V, 30 mA at 24 V

BUS 1 AND BUS 2

VOLTAGE RANGE

15 V to 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz



OUTPUTS

OUTPUTS C & D

8 A at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J

2 A DC at supply voltage
