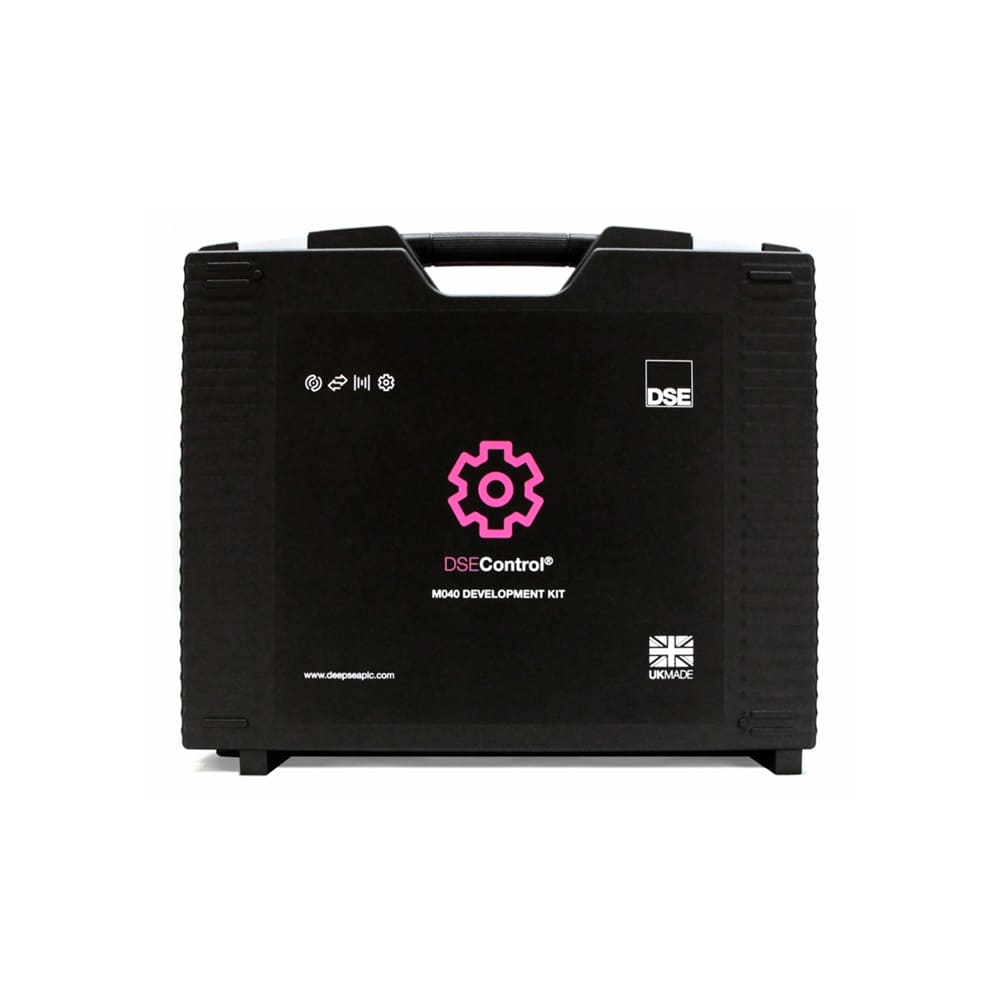

DSE M040-01 M64X Development Kit Original

https://powermaster.odoo.com/web/image/product.template/9997/image_1920?unique=2383dff

DSE M040-01 Development Kit

$ 2,448.48 2448.48 USD $ 2,448.48

$ 2,448.48

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSEM040 KIT DSE Kit

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

  8 V DC to 32 V DC


PRODUCT VARIANT
M040-01 – M040 Development Kit




WEIGHT
 9.36 POUNDS
SIZE
1.8 x 12 x 8 Inches




OPERATING TEMPERATURE RANGE

-40 ˚F to +185 ˚F

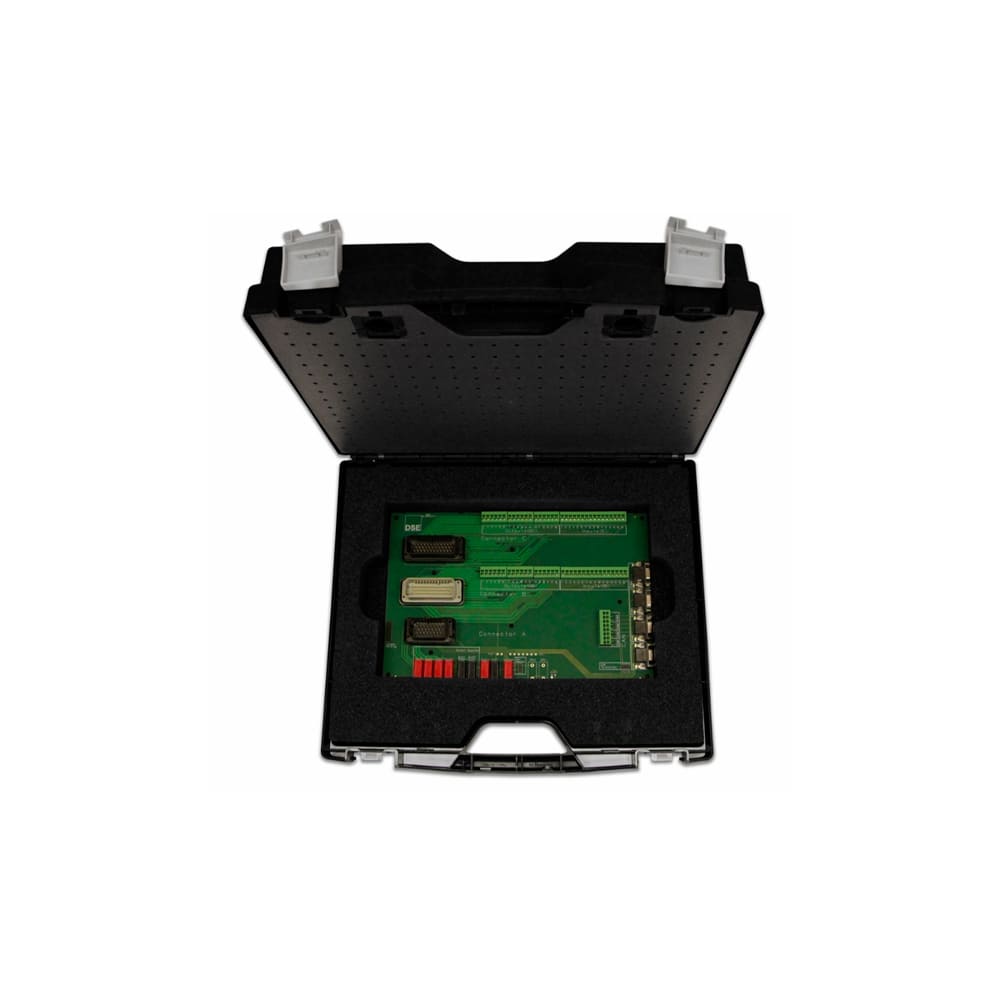

DEVELOPMENT BREAK OUT

PCB for application development.

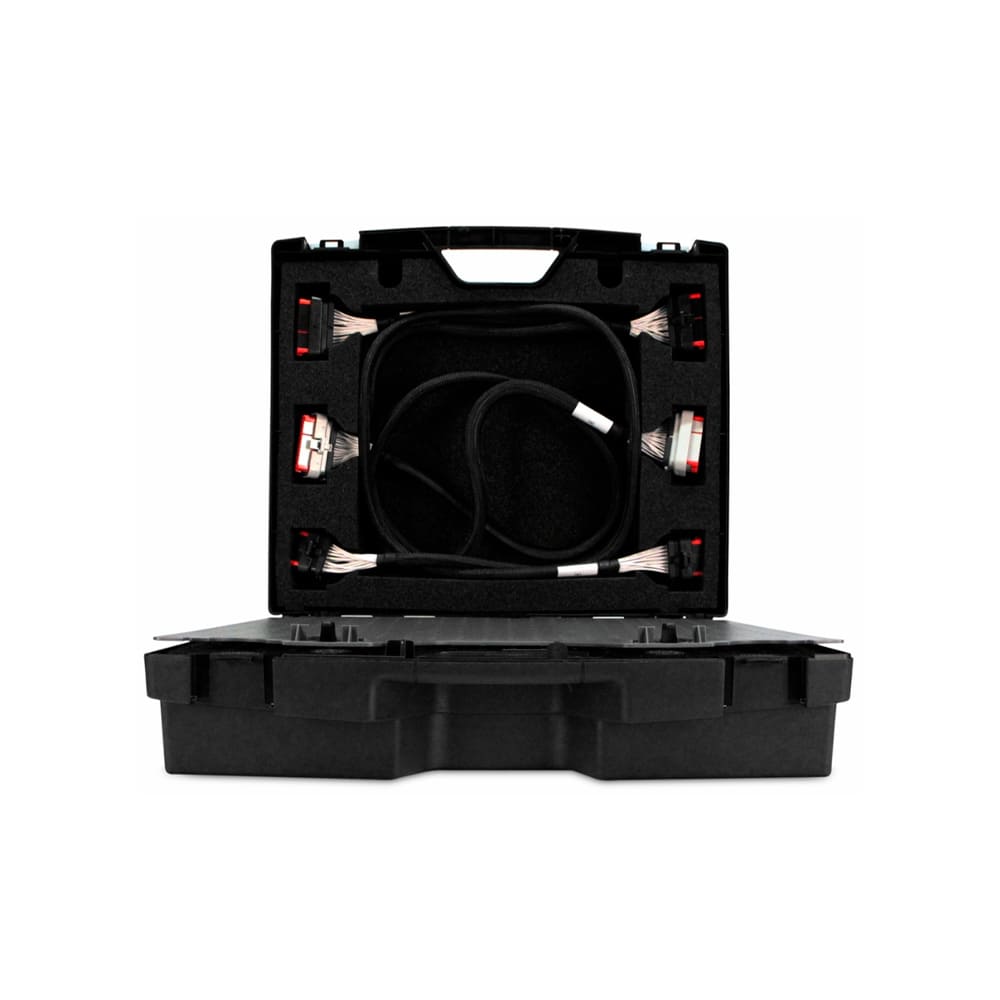

SET OF CONNECTING HARNESSES

For plug and play system.

SUITABLE FOR BOTH

A small explanation of this great feature, in clear words.

  • DC Supply - ◖8 V DC to 32 V DC
  • Total Inputs / Outputs - ◖68 (32 inputs / 36 outputs) ◖Inputs : 32 sprung terminal blocks, split into 2 blocks ◖Outputs : 36 sprung terminal blocks, split into 2 blocks
  • Dimensions - ◖Breakout : PCB 46 mm x 320 mm x 210 mm (H x W x D) 1.81 " x 12.6 " x 8.27 " (H x W x D) ◖Case : 160 mm x 437 mm x 379 mm (H x W x D) 6.3“ x 17.2 “ x14.92 “ (H x W x D)

  • Interfaces - ◖CAN : 1.4 Sub D9 connectors and sprung terminal blocks Built in 120 ohm termination resistors via jumper connected ◖Ethernet : 10 Mbit/s / 100 Mbit/s, Duplex ◖USB : USB Host 2.0 (12 Mbit/s)
  • Weight - ◖4.25 kg / 9.36 POUNDS
  • Storage Temperature Range - ◖-40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)
  • Operating Temperature Range - ◖-40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)

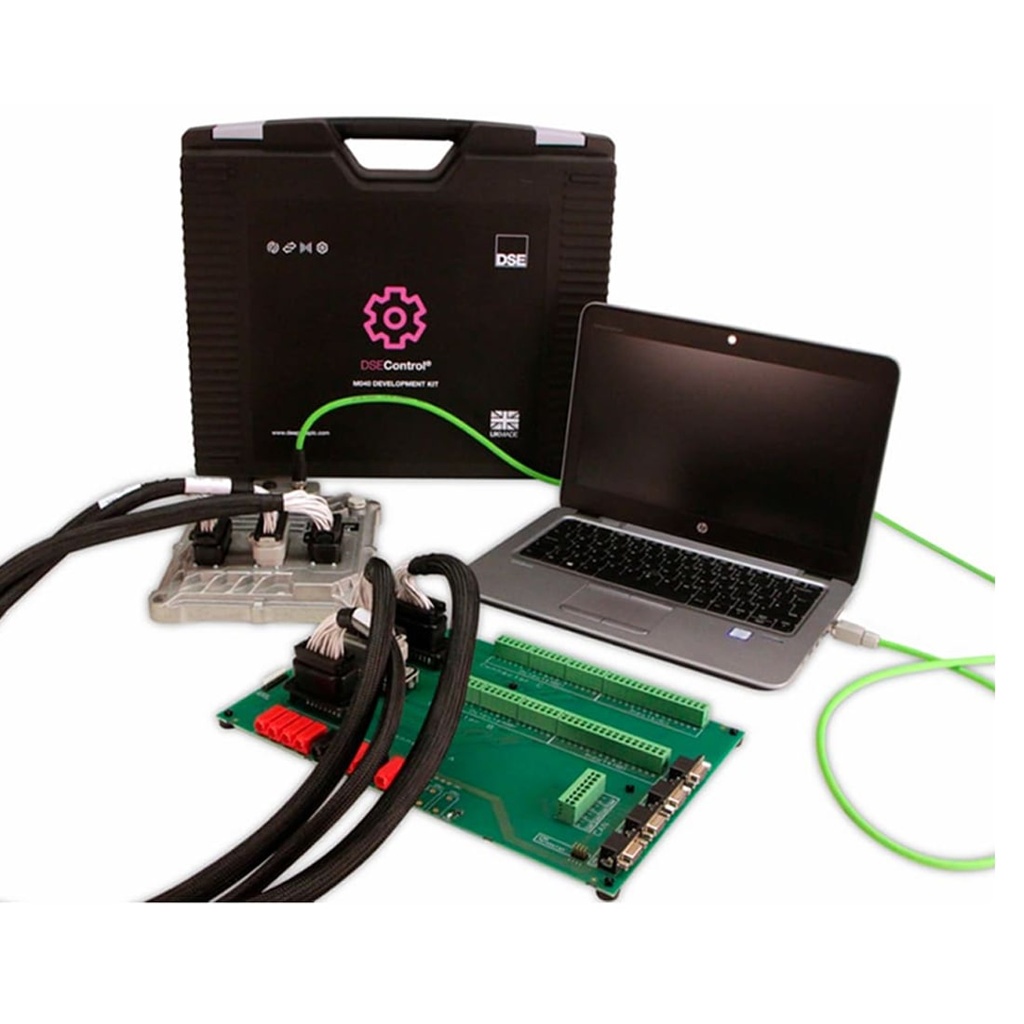

The M040 is a development kit for the M64X controller range. It allows the user to connect the breakout PCB to a laptop and control unit to assist with application development. M040 DEVELOPMENT KIT DOES NOT INCLUDE A DSEM640 OR LAPTOP.


Start with the customer – find out what they want and give it to them.


DC SUPPLY

6 V DC to 32 V DC (for M640)

TOTAL INPUTS/OUTPUTS

68 (32 inputs/36 outputs) (for M640)

INPUTS

OUTPUTS

INTERFACES

CAN 1 to 4

SubD9 Female Connectors and Sprung Terminal Blocks.

Built-in 120 Ω Termination Resistors via Jumper Connectors.




DIMENSIONS

BREAKOUT PCB

WEIGHT

4.25 Kg

STORAGE TEMPERATURE RANGE

-40 ˚ C to +85 ˚ C

-40 ˚ F to +185 ˚ F

STORAGE TEMPERATURE RANGE

-40 ˚ C to +85 ˚ C

-40 ˚ F to +185 ˚ F
