  3. DSE M643-01 Controller Original

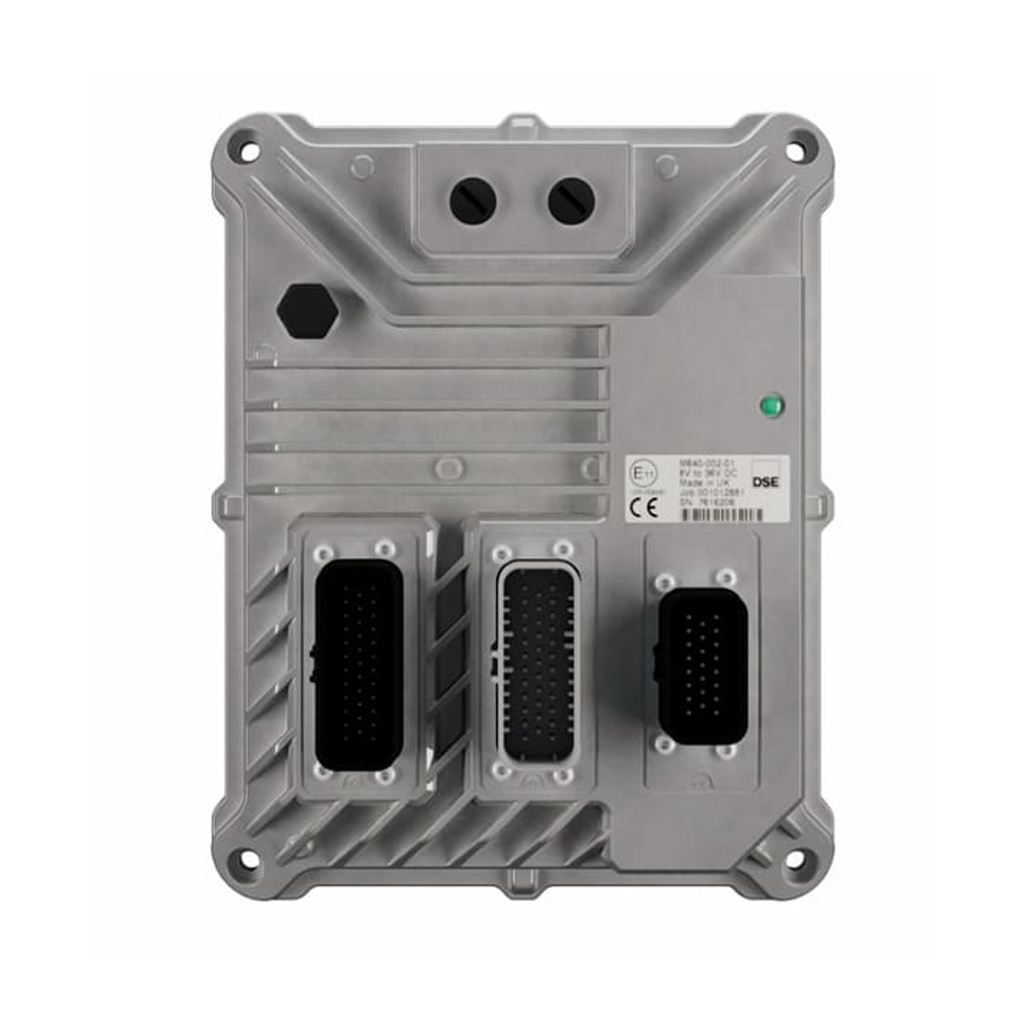

DSE M643-01 Controller Original

https://powermaster.odoo.com/web/image/product.template/9995/image_1920?unique=2383dff

DSE M643 off-highway controller

$ 1,642.29 1642.29 USD $ 1,642.29

$ 1,642.29

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSEM643

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


VOLTAGE RATING
8 V DC to 36 V DC



RELATED
PRODUCTS
DSEM040M64X
Development Kit
WEIGHT
3.30 POUNDS
SIZE
1.4 x 9 x 7 Inches
OPERATING TEMPERATURE RANGE

  -40 ˚F to +185 ˚F

RUGGEDISED DIE CAST

aluminium housing for IP67 protection.

POWERFUL 32 BIT PROCESSOR

With 220 MHz clock speed.

FLEXIBLE USER PROGRAMMING

via CODESYS 3.5.

  • DC Supply - ◖8 V DC to 36 V DC
  • Current Consumption - ◖Opperating Current : < 300 mA at 24 V without external loads
  • Total Inputs /Outputs - ◖ 34 (16 inputs / 18 outputs) ◖Inputs : Configurable Digital inputs (positive / negative) Analogue inputs voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V current 4 mA to 20 mA, Ratiometric, Resistive, Frequency, Phase, Fast Counter, Encoder ◖Outputs : Configurable 2 A / 4 A Digital Output High-Sided, Low-Sided PWM, PWMi
  • Dimensions - ◖ 49 mm x 240 mm x 190 mm (H x W x D) 1.46 " x 9.45 " x 7.48 " (H x W x D)

  • Weight - ◖1.5 kg / 3.30 Pounds
  • Interfaces - ◖CAN 1.4 : CAN Interfaces 2.0 A/B, ISO11898 50 kbits/s... 1 Mbit/s J1939, CAN Open and Raw CAN ◖Ethernet : 10 Mbit/s / 100 Mbit/s, Duplex ◖USB : USB Host 2.0 (12 Mbit/s)
  • Storage Temperature Range - ◖-40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)
  • Operating Temperature Range - ◖-40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F) (at full load)
  • Protection Rating - ◖IP67 (with mating connectors)
  • Mounting - ◖4 x M6 bolts


​

  18 configurable outputs

​

  Powerful 32 bit processor

​

  4 independent CAN interfaces


  • Controller specifically designed for mobile applications.
  • Powerful 32 bit processor with 220 MHz clock speed.
  • 16 configurable inputs with digital and analogue capability.
  • 18 configurable outputs with digital, PWM and PWMi.


  • 4 independent CAN interfaces, J1939, CAN open and RAW CAN.
  • Ethernet interface for communications.
  • Ruggedised die cast aluminium housing for IP67 protection.
  • Flexible user programming via CODESYS 3.5.


The DSE M643 provides advanced programmable control options for vehicles and off-highway machinery and has been developed specifically for mobile applications. Sealed to IP67, the device incorporates a breather to allow the unit to equalise pressure and reduce condensation whilst filtering out liquids and other contaminants. The unit features Ethernet, USB, CAN and  configurable I/O.Inside the unit is a powerful 32 bit processor with a 220 MHz clock speed for outstanding operating response times. There are also 4 independent CAN interfaces, J1939, CAN Open and Raw CAN. Flexible user programming is provided via CODESYS 3.5 (C programming on request).


DC SUPPLY

8 V DC to 36 V DC

CURRENT CONSUMPTION

OPERATING CURRENT

<300 mA at 24 V without external loads

TOTAL INPUTS/OUTPUTS

34 (16 inputs /18 outputs)

INPUTS

Configurable

Data inputs (positive/negative)

Analogue inputs voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V current 4mA to 20mA, Ratiometric, Resistive, Frequency, Phase, Fast Counter, Encoder

OUTPUTS

Configurable

2 A / 4 A

Digital Output high-sided, low-sided

PWM, PWMi



INTERFACES

CAN1..4

Can interfaces 2.0 A/B, ISO 11898

50kbit/s…1Mbit/s

J1939, CAN Open and Raw CAN

ETHERNET

10 Mbit/s / 100 Mbit/s, Duplex

USB

USB Host 2.0 (12Mbit/s)



STORAGE TEMPERATURE RANGE

-40 ˚C to +85 ˚C

-40 ˚F to +185 ˚F

OPERATING TEMPERATURE RANGE

-40 ˚C to +85 ˚C

-40 ˚F to +185 ˚F

(at full load)

PROTECTION RATING

IP67 (with mating connectors)

MOUNTING

4 x M6 bolts
