  2. DSE M870-01 Programmable Display

DSE M870-01 Programmable Display

https://powermaster.odoo.com/web/image/product.template/9993/image_1920?unique=2383dff

Original

DSE M870 7" OH Display

$ 3,811.16 3811.16 USD $ 3,811.16

$ 3,811.16

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSEM870 M-Series

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



VOLTAGE RATING

  8 V DC to 32 V DC continuous



PRODUCT VARIANTS
M870-01 - CODESYS (Standard)
M870-02 - CODESYS (Touchscreen)

WEIGHT
2.75 POUNDS
SIZE
10 x 6 x 3 Inches
OPERATING TEMPERATURE RANGE
-22 ˚ F to +185 ˚ F


M870-04 Qt (Touchscreen) Variant - Now Available.

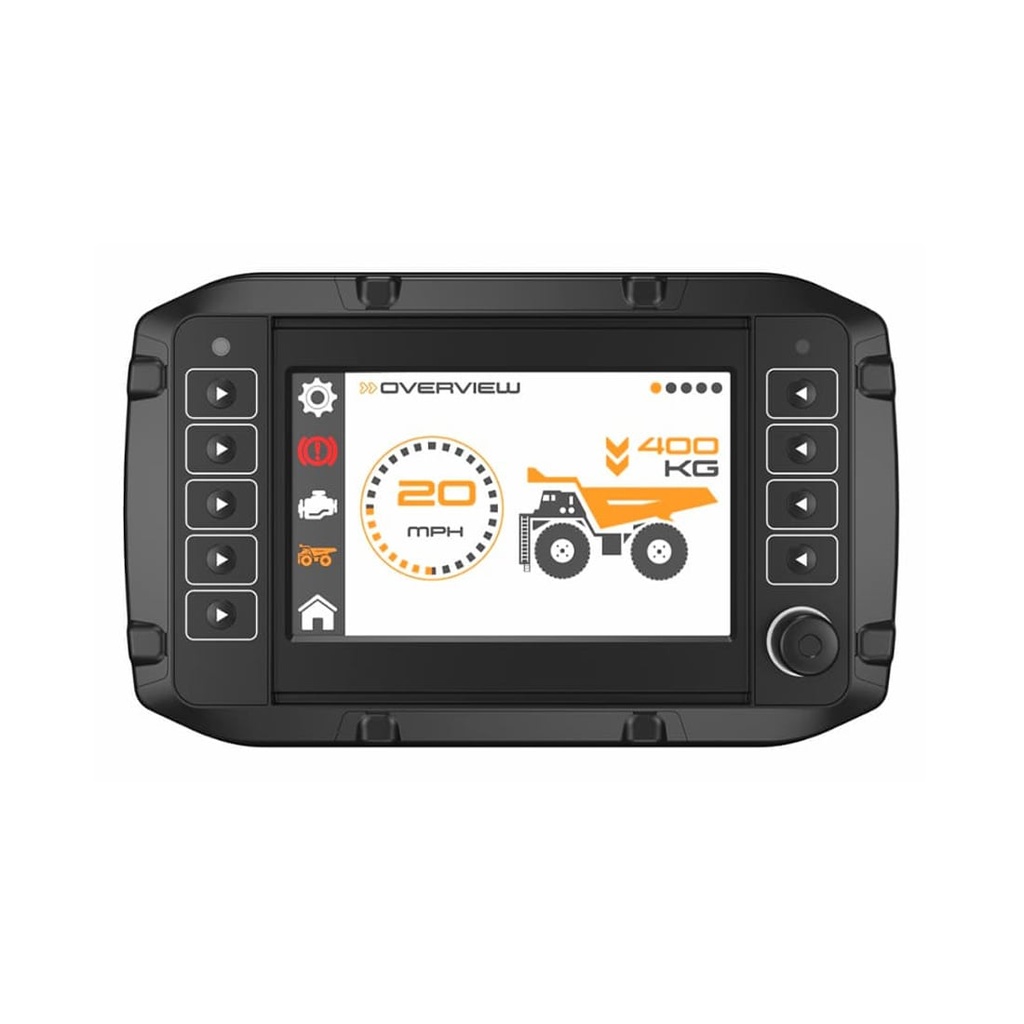

The DSEM870 is a 7" programmable display designed for use on vehicles and off highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04).



​OPTIONAL TOUCHSCREEN VARIANT​
Adds additional control and navigation options.
2 CAMERA INPUTS
Ability to provide multiple camera views and angles.
4 CONFIGURABLE DIGITAL OUTPUTS​
Allows control of lamps and relays and other digital devices.
  • DC Supply - ◖Voltage Rating : 8 V DC to 36 V DC
  • Current Consumption - ◖Operating Current : < 1000 mA at 12 V and 24 V without external loads < 1500 mA at 12 V and 24 V with Htr.
  • Display - ◖800 px x 480 px 24 bit colour Optically bonded
  • Inputs /Outputs (total) - ◖4 inputs / 4 outputs ◖Inputs : Configurable, Digital inputs (positive / negative) Analogue inputs (Voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V, current 4 mA to 20 mA, Ratiometric, Resistive, Frequency) ◖Outputs : Configurable Digital Output High-Sided/Low-Sided ◖Vref Out : 500 mA at 10 V / 5 V
  • Dimensions - ◖272 mm x 165 mm x 81 mm (W x H x D) 10.8” x 6.3” x 3.15” ( W x H x D)
  • Weight - ◖1.25 kg / 2.75 Pounds
  • Interfaces - ◖CAN : 1.2 CAN Interfaces 2.0 A/B, ISO11898 50 kbits/s... 1 Mbit/s CAN Open, SAE J1939 or Raw CAN ◖Ethernet : 10 Mbit/s / 100 Mbit/s, Duplex ◖USB : USB Host 2.0 (480 Mbit/s)
  • Storage Temperature Range -◖-40 ˚ C to +85 ˚ C (-40 ˚ F to +185 ˚ F)
  • Operating Temperature Range - ◖-30 ˚ C to +85 ˚ C (-22 ˚ F to +185 ˚ F)
  • Protection Rating - ◖IP67/NEMA 6 (with mating connectors)
  • Mounting - ◖8 x M5 bolts / RAM arm



The DSEM870 is a 7" programmable display designed for use on vehicles and off highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04).


DC SUPPLY

8 V DC to 36 V DC

CURRENT CONSUMPTION

OPERATING CURRENT

DISPLAY

800 px x 480 px

24 bit colour

Optically bonded





INPUTS/OUTPUTS (total)

4 inputs / 4 outputs

INPUTS

Configurable,

Digital inputs (positive / negative)

Analogue inputs (Voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V, current 4 mA to 20 mA, Ratiometric, Resistive, Frequency)

OUTPUTS

Configurable

Digital Output High-Sided/Low-Sided

VREF OUT

CAN 1.2

CAN Interfaces 2.0 A/B, ISO11898

50 kbits/s... 1 Mbit/s

CAN Open, SAE J1939 or Raw CAN

ETHERNET

10 Mbit/s / 100 Mbit/s, Duplex

USB

USB Host 2.0 (480 Mbit/s)



DIMENSIONS

272 mm x 165 mm x 81 mm (W x H x D)

10.8” x 6.3” x 3.15” ( W x H x D)

WEIGHT

1.25 kg

STORAGE TEMPERATURE RANGE

-40 ˚ C to +85 ˚ C

-40 ˚ F to +185 ˚ F

OPERATING TEMPERATURE RANGE

-30 ˚ C to +85 ˚ C

-22 ˚ F to +185 ˚ F

PROTECTION RATING

IP67/NEMA 6 (with mating connectors)

MOUNTING

8 x M5 bolts / RAM arm
