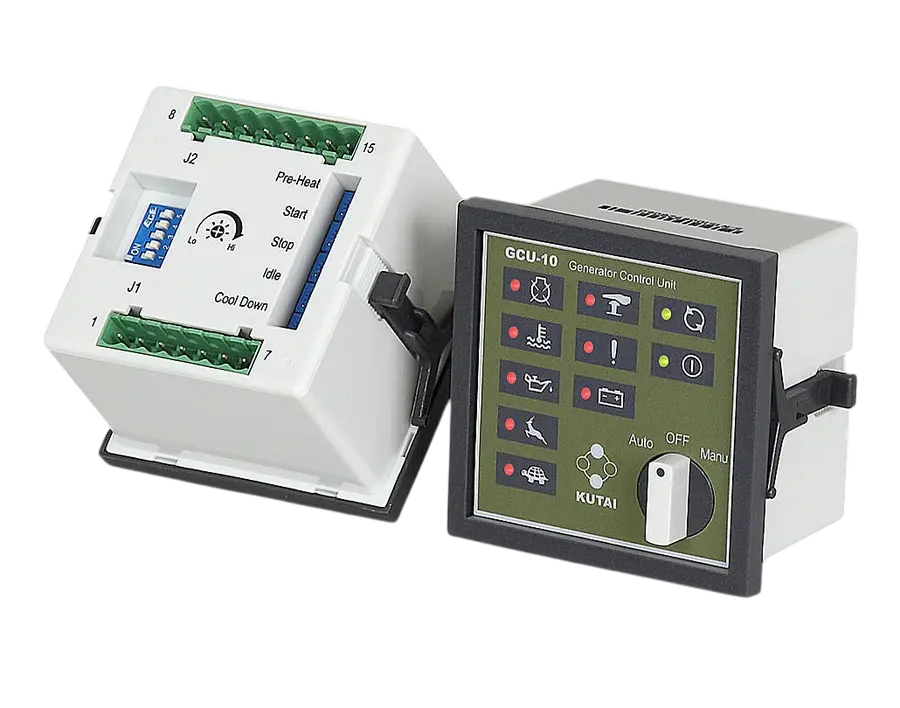

Power Master GCU-10 Generator Control Unit

Simple Engine Controller

$ 235.40 235.4 USD $ 235.40

$ 235.40

This combination does not exist.

Add to cart Buy now

GCU-10 Engine Controller

Documents

GCU-10 Generator Control Manual.pdf

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

9 to 36 Vdc

POWER CONSUMPTION

Under 3 VA on Auto

WEIGHT

0.3 POUNDS

SIZE

3 x 3 x 2 Inches

OPERATING TEMPERATURE

-20 to +60 °C

Key Features
Description

LED STATUS INDICATOR

With graphic indicator.

ADJUSTABLE SETTINGS

To suit wide array of generator set application.

MODULAR DESING

With easy installation

DC Supply - ◖DC Voltage: 9 to 36 Vdc.
Alternator Input Range - ◖AC Voltage: 5 to 300 Vac. ◖Frequency: 50/60 Hz
Power Consumption - ◖2 Watts.
Idle Control Conductor Capacity - ◖5 Amp @ 12/24 Vdc.

Adjustable Timers - ◖Engine Pre-Heater: 2 to 300 Seconds ◖Engine Idle (Governor): 0 to 300 seconds ◖Energize To Stop: 1 to 30 Seconds.
Operating Temperature - ◖-20 to +60 °C
Relative Humidity - ◖Max. 90%
Dimensions - ◖ Weight: 0.3 POUNDS ◖Size: 3 x 3 x 2 Inches

Generator Control Unit The GCU-10 Generator Control Unit is an universal economical programmable genset controller. Equipped with high illuminating LED with universal graphical interface helps to notify the operator the generator status. Optional relay module GCU-11R (12V/24V) helps to simplify the wiring and connection process. Data Sheet Microprocessor Based Design Universal LED Graphic Interface, Displays Generator Status and Failures Modular Design, Quick Installation Programmable Engine & Generator Controls Adapts Easily To Any Type Generator Set. Waterproof Front Panel With UV Protection Provide IDLE control For Elec. Governors Five Adjustable Time Delay Potentiometers Five DIP Switches For Specification Setting
