Hotstart KIT-TPS102GT8-000 Original Engine Heater

https://powermaster.odoo.com/web/image/product.template/17766/image_1920?unique=99993c0

KIT (Heater (+Mouting bracket) + 5 FT Heater Hose + 2 x SS Clamps

$ 190.94 190.94 USD $ 190.94

$ 190.94

Not Available For Sale

This combination does not exist.

Contact Us
Engine Heater Hotstart Engine Heater Kit KIT-TPS102GT8-000

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER SUPPLY

  240 V 1.8kW 15Amps 60Hz

ENGINE DISPLACEMENT

350 CID (5.7 L)

WEIGTH

1,6 POUNDS

SIZE

8 x 5 x 5 Inches

TEMPERATURE RANGE

ON : 80°F (27°C)
OFF : 100°F (38°C)


PROVEN DESIGN
Depend on consistent, reliable heating with the proven design of the TPS thermosiphon heater.
EASY INSTALLATION​
The TPS’s inlet and outlet positions allow for quick and simple installations, reducing complicated plumbing requirements.
 VERSATILE & ADAPTABLE​
The TPS can be configured for almost any weather-protected application.
  • Power Supply - ◖240 V 1.8kW 15Amps 60Hz
  • TPS System - ◖Phase : single-phase (1 Ø) ◖Voltage : 240V ◖Ingress : IP41 ◖Tank Material : Polyphenylene Sulfide (PPS) ◖Heating Element Material : Incoloy 800 ◖Min./Max. Ambient Temp : -40–40 °C (-40–104 °F) ◖Certification UL/C-US-listed, CE-compliant
  • TPS Coolant - ◖Fluid Type : Water Coolant mix (50% water/50% glycol) ◖Heat Power* : 1.8 kW ◖Temp. Control : Fixed, 100–120°F (38–49°C) ◖Max. Pressure : 90 psi (620 kPa) ◖Inlet/Outlet : 0.625” hose barb (15.9 mm)
  • Temperature Range Numerical - ◖ON : 80°F (27°C) ◖OFF :  100°F (38°C)

HOTSTART TPS engine heaters provide even heat distribution resulting in reduced engine wear, quick start-ups and reduced emissions. The compact design is ideal for locations that require minimal mounting space. Specs: Heating Element: Incoloy 800 Enclosure: IP41 Resists corrosion Fluid Capacity: 0.11 gal (0.42 L) Maximum Pressure: 90 psi (620 kPa) Inlet/Outlet Plumbing: 0.625” (15.9 mm) Tank Material: Polyphenylensulfid PPS L-C/US listed CE compliant. Power cord length on all models – 48” (1219mm).

  • Pre-Heat: Diesel and Gas engines Used in: Marine Heating Systems, Railroad operations, Heavy equipment, Trucks and Bus, Emergency generators, Oil and Gas and Industrial applications.

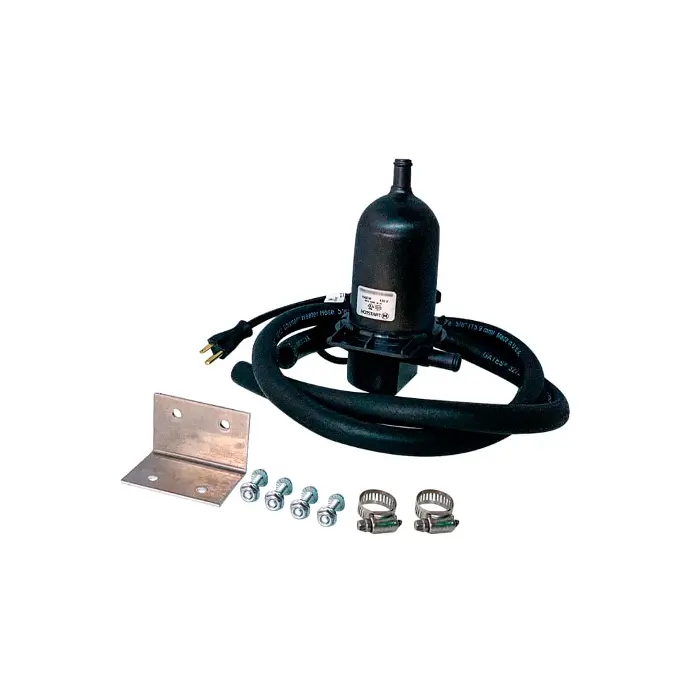

  • Engine Heater Kit Includes: Original HOTSTART TPS heater | Mounting hardware | 5 feet of ⅝”- high temperature heater hose (can but cut into pieces) | 2 x Stainless steel industrial type hose clamps | installation instructions.
  • Heating Fluid: Engine Coolant, Water, other – No pump needed (thermosiphon principle) | Cut the hose to the required length based on your engine size | 4 foot power cord | 5/8″ hose nipples.
  • Engine Displacement: 350 CID (5.7 L)
  • Volts: 240v – kW: 1 – AMPS: 4.2 – 60Hz
  • Temperature Range: 80°F (27°C) – OFF 100°F (38°C)
