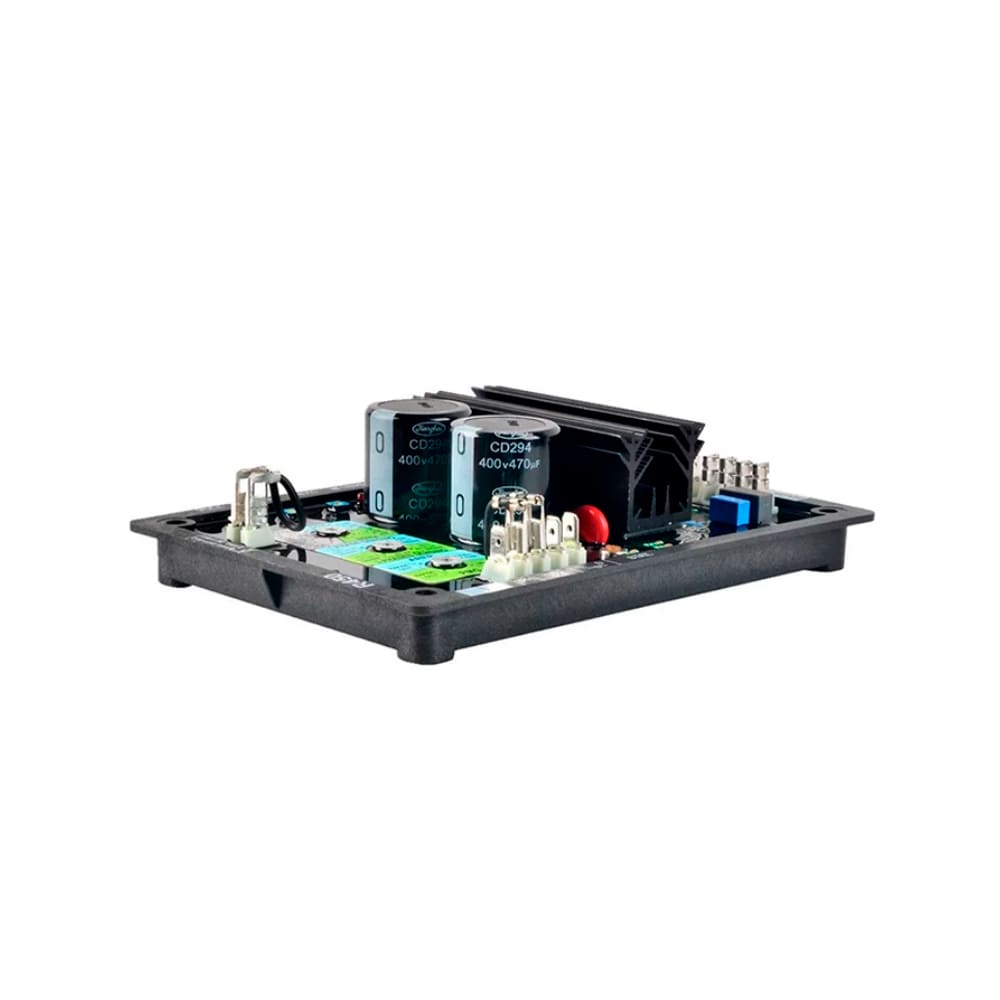

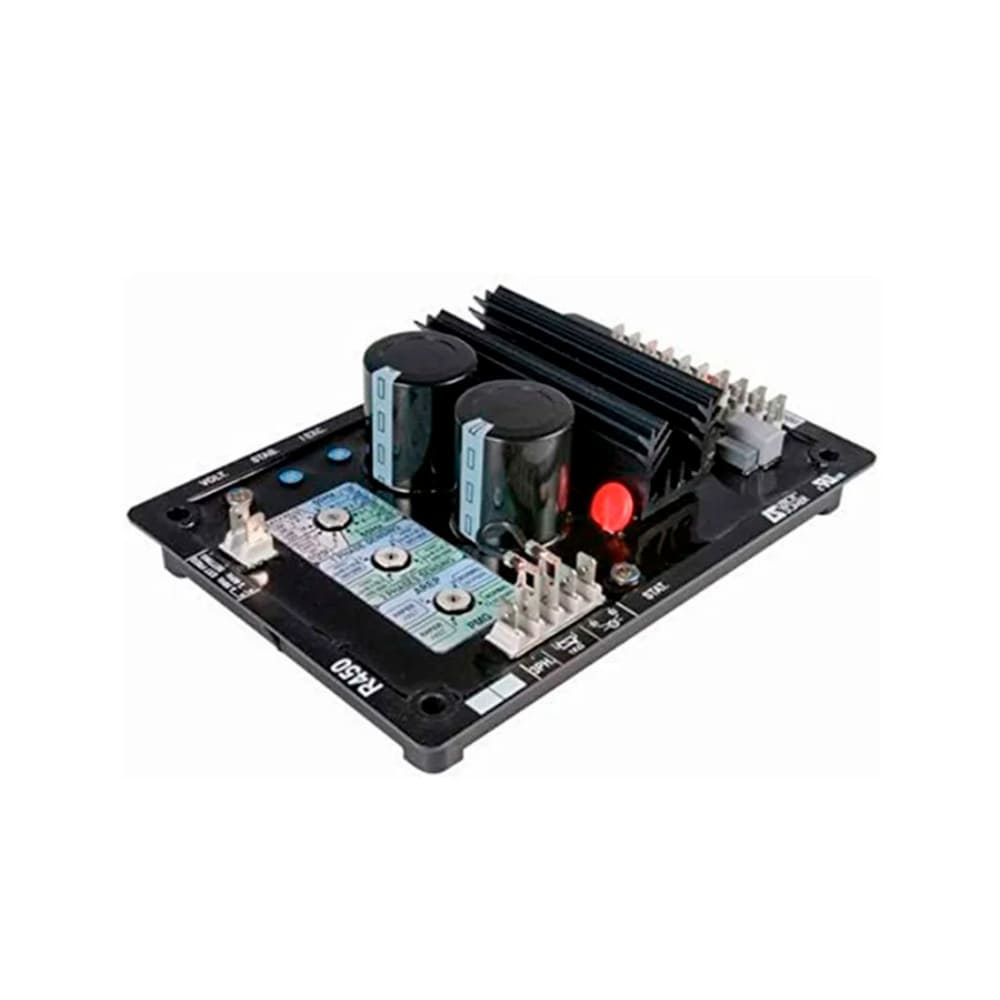

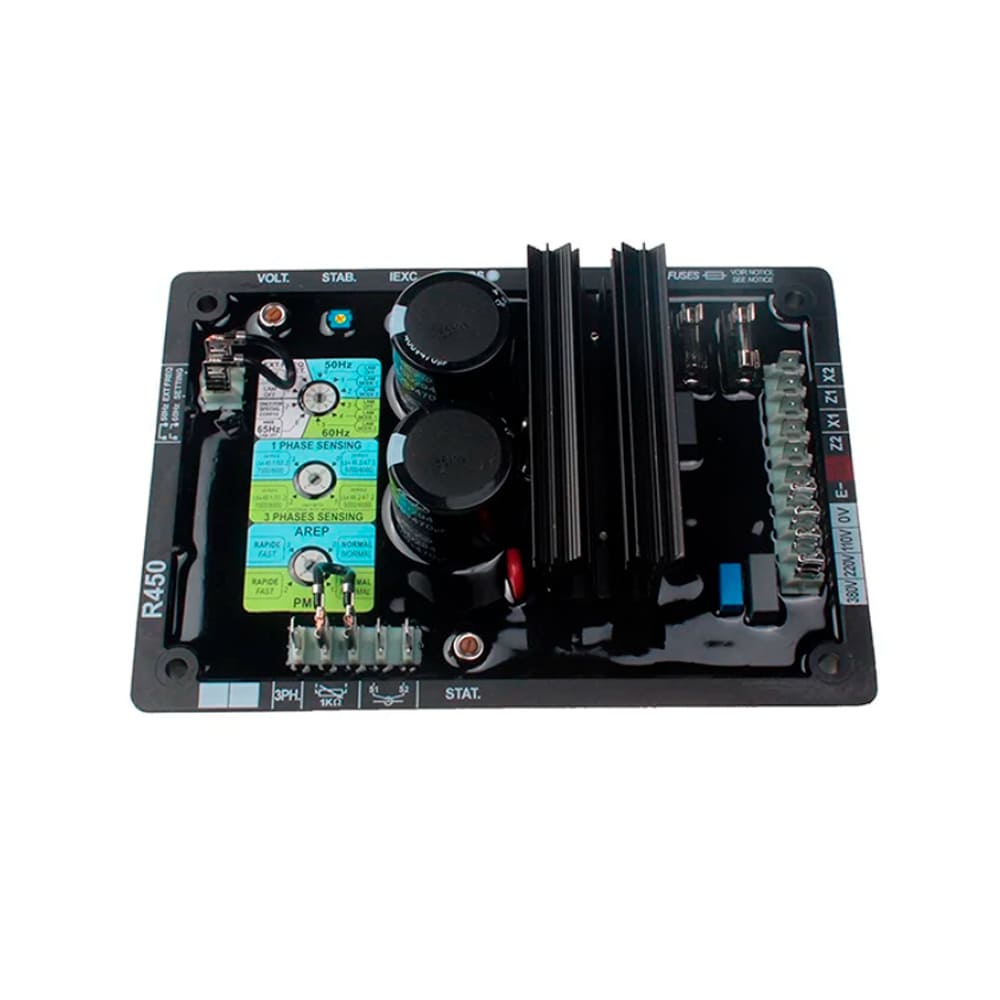

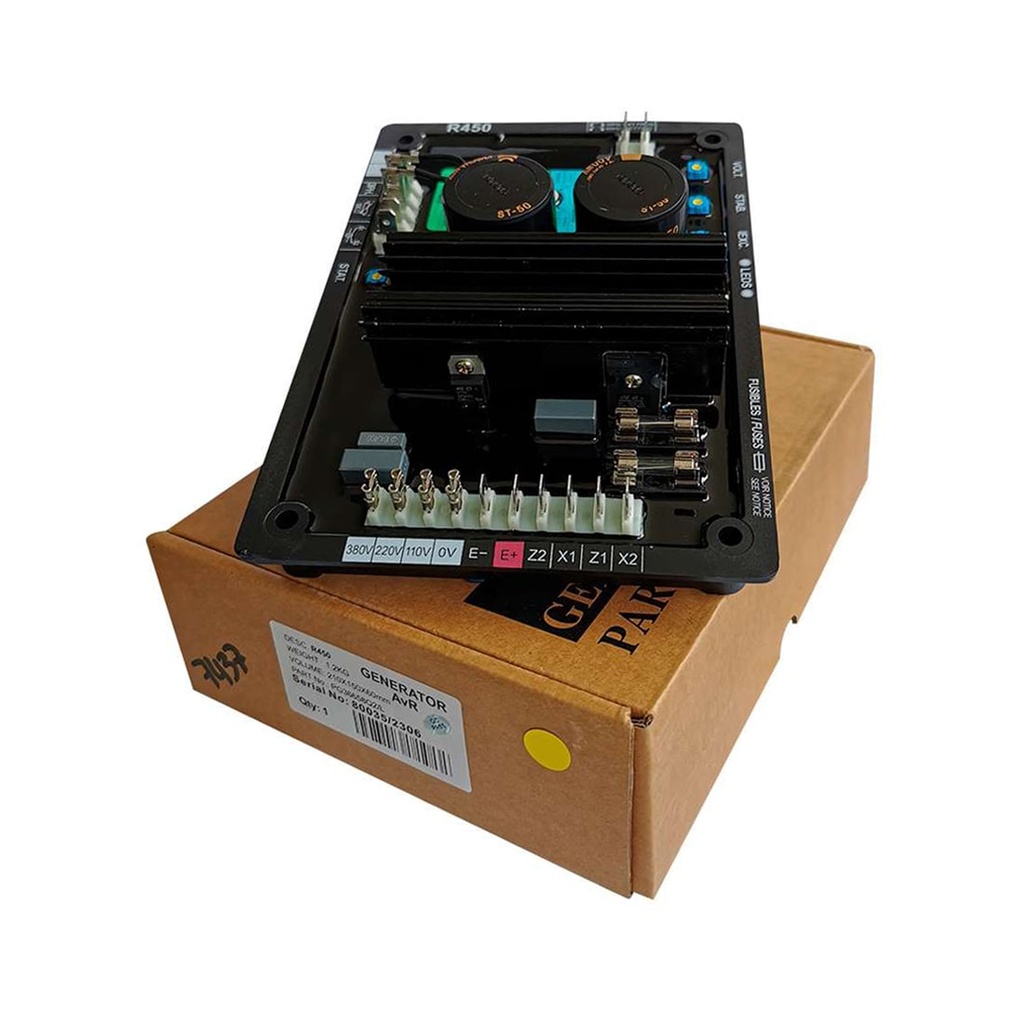

Leroy Somer R450 Original AVR

https://powermaster.odoo.com/web/image/product.template/9964/image_1920?unique=80d900c

voltage Regulator

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

This combination does not exist.

Contact Us
Leroy Somer

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




DETECTION INPUT

80 - 350V AC single phase






OUTPUT
Max. 63V DC@ 220V AC input


WEIGHT

2.1 POUNDS

SIZE

  9 x 7 x 3 Inches

VOLTAGE
BUILD-UP

Residual voltage greater than 5V AC 25 Hz


The R450 Voltage Regular Automatic Voltage Regulator was engineered and is manufactured exclusively by Leroy Somer, a French division of Emerson. Leroy Somer is the world’s largest AC Alternator manufacturer. The Leroy Somer R450, a quality, original product made in France, has a one year international warranty and technical support.

UNIT POWER DISSIPATION

Max. 5 Watts

FREQUENCY PROTECTION

42-60Hz Adjustable Range

OPERATING TEMPERATURE

30ºC to+ 65º C.

  • Detection input - 80 - 350V AC single phase
  • Power input - ◖Voltage: 50-270V AC ◖ Frequency: 50/60 Hz
  • Output - max. 63V DC@ 220V AC input , 6A continuous
  • Voltage regulation accuracy - <± 1% with 4% motor regulation
  • Voltage build-up - Residual voltage greater than 5V AC 25 Hz
  • External voltage regulation - 100K ohm 1/2 watt ± 7%
  • Unit Power Dissipation  - max. 5 Watts
  • Frequency protection - 42-60Hz adjustable range


  • Over excitation Protection - 40- Max. VCC @ 0.3-20 sec.
  • EMI Suppression - Filtering of internal electromagnetic interference
  • Excitation winding resistance - DC resistance 10-100 ohm
  • Operating temperature - 30ºC to+ 65º C.
  • Storage temperature - - 55ºC to+ 85ºC.
  • Shocks on the base - 9 g depending on the 3 axes.
  • Relative humidity - maximum 95%
  • Vibrations - less than 1 O Hz, 2 mm half-peak amplitude 10 Hz to 100 Hz: 100 mm/s, above 100 Hz: 8 g.




The R450 Voltage Regular Automatic Voltage Regulator was engineered and is manufactured exclusively by Leroy Somer, a French division of Emerson. Leroy Somer is the world’s largest AC Alternator manufacturer. The Leroy Somer R450, a quality, original product made in France, has a one year international warranty and technical support.



The red and the green LEDs light if the continuous operation threshold continues for more than 90 secs, and flashes when the excitation is above the continuous operation threshold for fewer than 90 secs.

When voltage fluctuates, the R450’s soft voltage recovery function helps it return to its rated speed faster by supplying a gradual increase in voltage. This function is designed to minimize operating problems.
