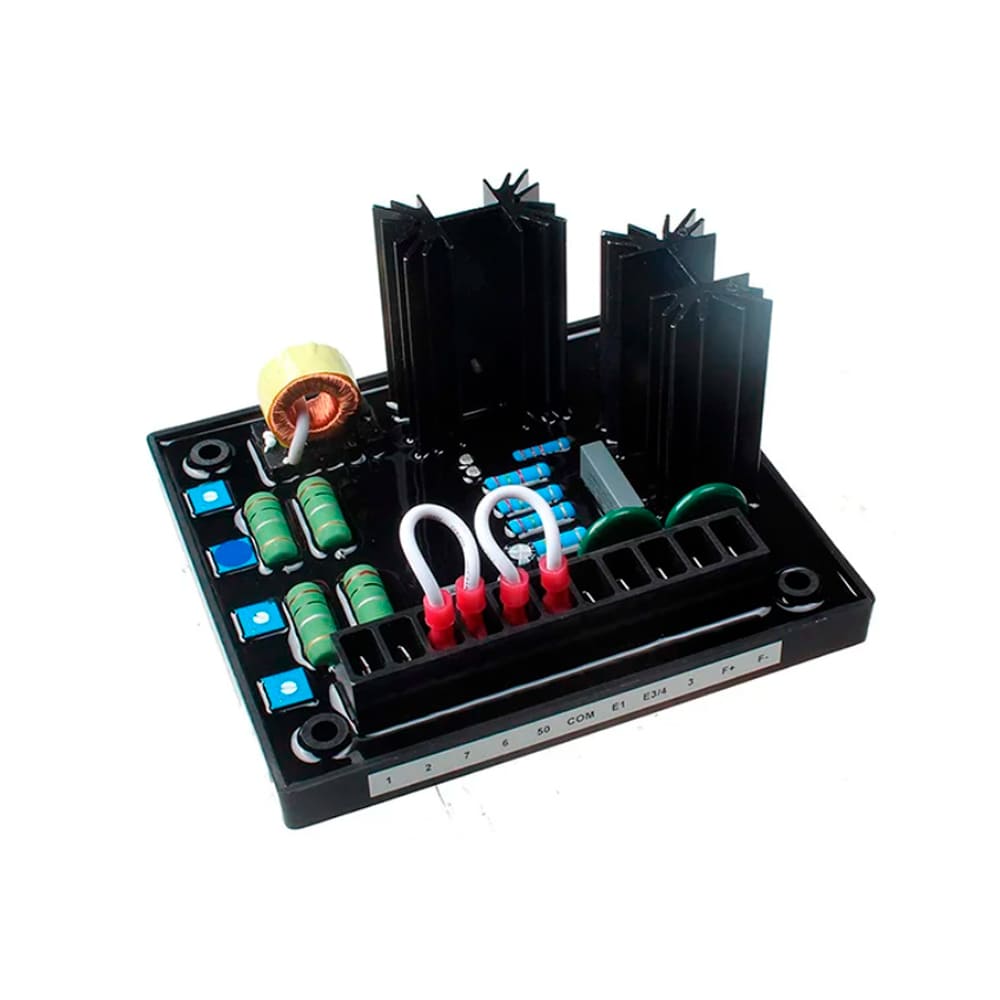

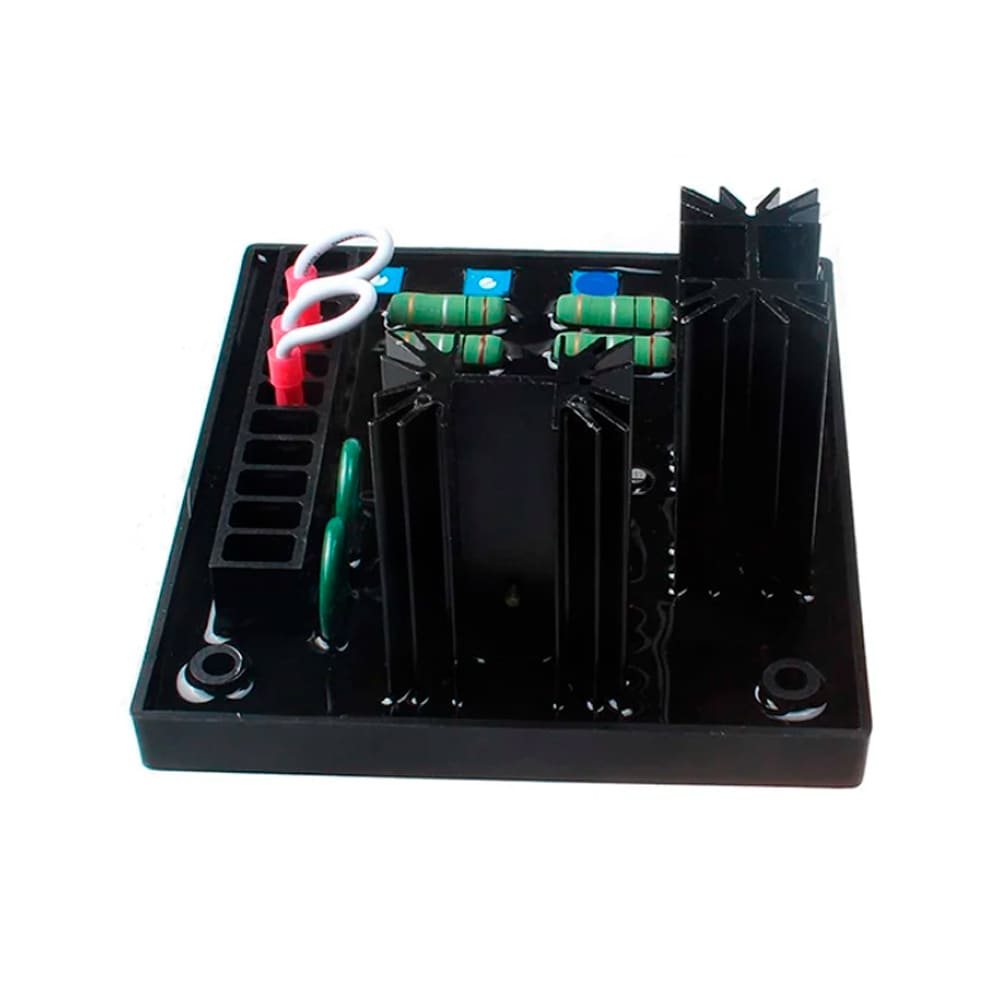

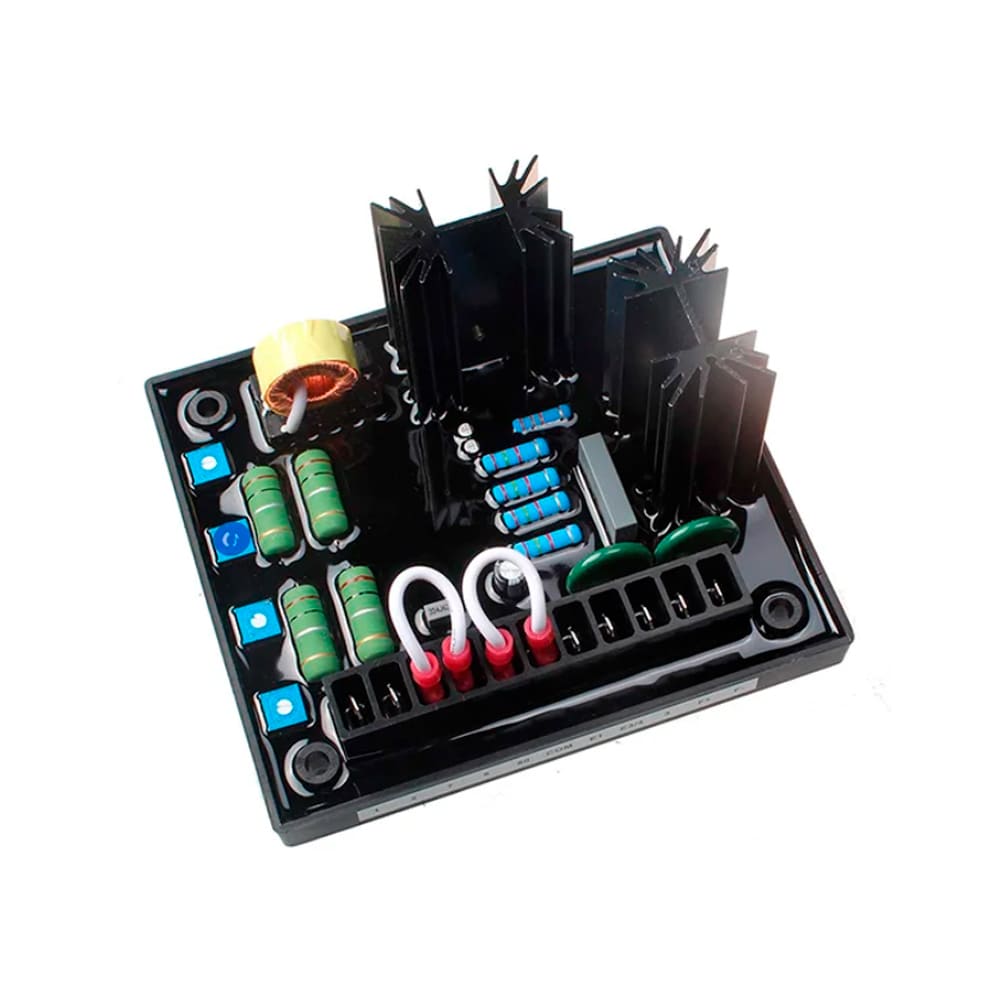

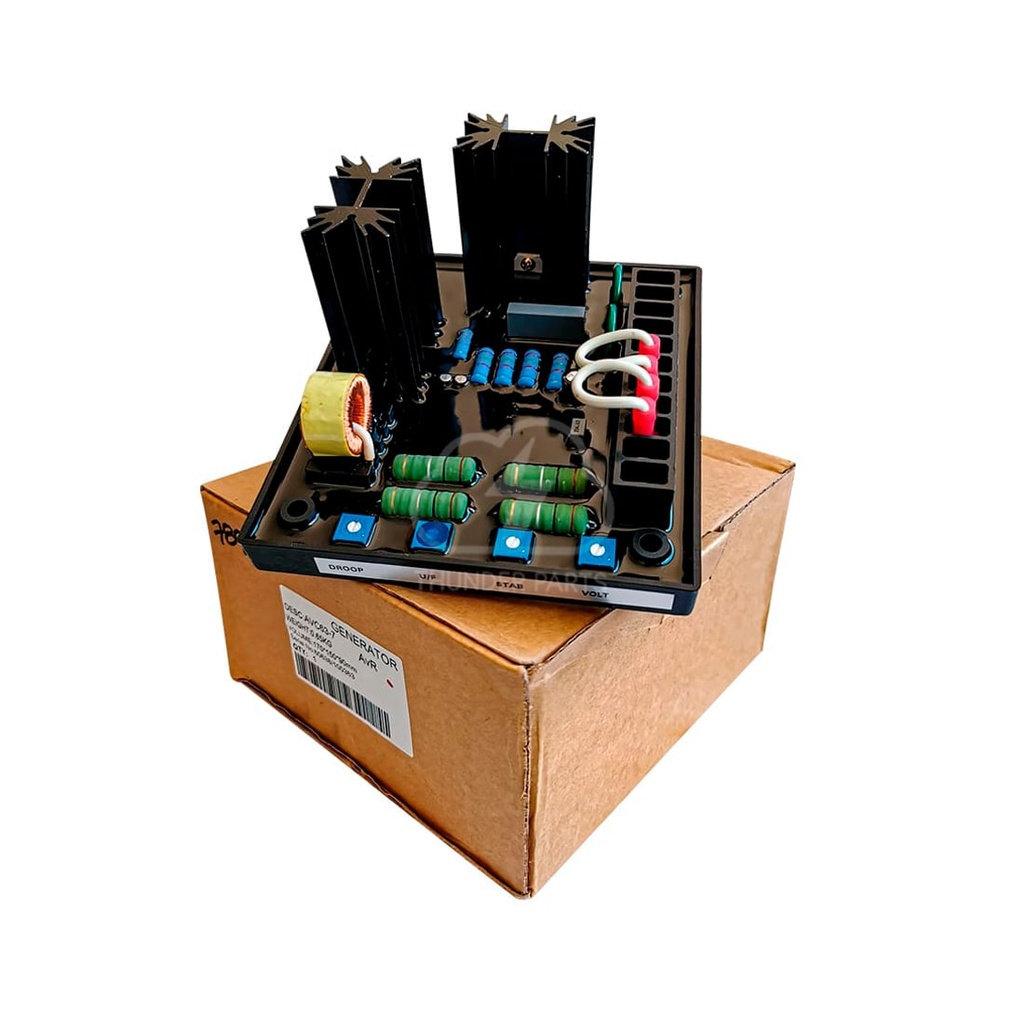

Voltage Regulator | AVC63-7 Basler Original

voltage Regulator

This combination does not exist.

Leroy Somer

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

190-240Vac ±10%

Max. Cont. 63Vdc

1.2 POUNDS

7 X 6 X 3 Inches

Internal provisions for automatic voltage buildup from generator residual voltages as low as 6 Vac

-40°C (-13°F) to +60°C (+140°F)

35 Watts maximum

Sensing Input - ◖Voltage Adjust Range: 190-240Vac ±10% ◖Burden: < 5VA
Paralleling Provisions - ◖Current Input: 5 Amp ◖Burden: 2.5VA
DC Output - ◖Max. Cont: 63Vdc 7Adc ◖Max. Forcing 10 Sec (240Vac Input): 105Vac 11.5Adc
Exciter Field Resistance - ◖Min. Ohms @ 25°C: 9Ω ◖Max. Ohms: 100Ω
Power Input - ◖Single Phase Voltage Range: 190-277Vac ±10% (50/60Hz) - ◖Burden: 900VA
Regulation Accuracy - ◖Better than ±.25% no load to full load.
Response Time - ◖Less than 1.5 cycles for ±5% change in sensing voltage.
Emi Suppression - ◖Internal electromagnetic interference filtering.

Voltage Buildup - ◖Internal provisions for automatic voltage buildup from generator residual voltages as low as 6 Vac.
Terminations - ◖1/4 “Fast-On” Terminals
Power Dissipation - ◖35 Watts maximum.
Operating Temperature - ◖-40°C (-13°F) to +60°C (+140°F).
Storage Temperature - ◖-40°C (-40°F) to +85°C (+185°F).
Vibration - ◖Withstands 1.2 Gs at 5 to 26 Hz; 0.036” double amplitude at 27 to 52 Hz; and 5 Gs at 53 to 1000 Hz.
Shock - ◖Withstands up to 15 Gs in each of three mutually perpendicular axes.

AVC63-7 uses enhanced technology that is designed for use on 50/60Hz brushless generators. Several models are available with 240 or 480Vac sensing and with or without paralleling provisions. Each model provides reliable performance due to its small, ruggedly constructed package. Self Excited Automatic Voltage Regulator Compatible with Newage* SX460 Features < ± 1.5% Regulation Soft Start Voltage Ramping Sensing Voltage Loss Protection 120 or 240 VAC Sensing, Jumper Selectable Under Frequency Roll Off Protection With Under Frequency LED Indicator *Use for reference purpose only.
